ATI Radeon HD 5830: The Slowest Cypress-Based Card

Radeon HD 5830 reference board

XFX Radeon HD 5830

The Radeon HD 5830 is AMD’s new product to fill the gap between the HD 5850 and the HD 5770.

The HD 5830 comes with half of the ROPs compared to the HD 5850 (32 ROPs). ROPs (Raster OPeration) are important because they do operations such as color blending and their number has a direct impact on performance.

The HD 5830 has the same memory performance than the HD 5850 and even offers better performance than the HD 5850 at the GPU level. But the higher GPU clock leads to a higher power consumption: the TDP (thermal design power) of the HD 5830 is 171W while the TDP of the HD 5850 is only 151W…

The HD 5830 uses the same design than the HD 5870

In term of OpenCL GPU computing power, the HD 5830 comes with 14 compute units (Radeon HD 5870: 20 and Radeon HD 5850: 18 – see HERE for more details about compute units)

Radeon HD 5830 main features:

• GPU: Cypress @ 800MHz / 40nm
• Shaders processors: 1120
• Memory: 1GB GDDR5 @ 4000MHz / 256-bit
• TDP: 175W (idle: 25W)
• Texture units: 56
• ROPs: 16
• 3D APIs: OpenGL 3.2 and Direct3D 11
• GPU Computing: OpenCL 1.0 and DirectCompute
• CrossFire X connectors
• Price: around $240

3D performance:

FurMark performance (OpenGL 2) – [source]

Unigine performance (Direct3D 11) – [source]

Selected reviews

• AMD’s Radeon HD 5830: A Filler Card at the Wrong Price
• ATI Radeon HD 5830 1GB DX11 Video Card Review
• ATI Radeon HD 5830 Review
• AMD Radeon HD 5830 Graphics Card Review – 5870 Eyefinity Edition too!
• ASUS EAH 5830 DirectCU

Graphics cards makers roundup:

HIS Radeon HD 5830

XFX Radeon HD 5830

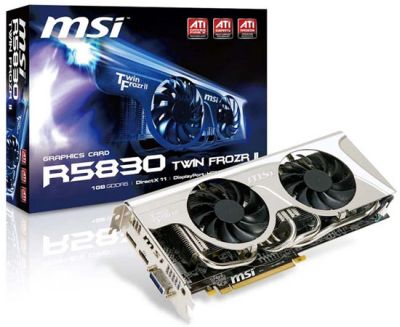

MSI R5830 Twin Frozr II

GIGABYTE Radeon HD 5830

Sapphire Radeon HD 5830

Club 3D Radeon HD 5830

Powercolor Radeon HD 5830
