3 – Ivy Bridge – OpenCL Side

This is the interesting part. Sandy Bridge processors are available with an OpenCL support limited to the CPU only. Now with Ivy Bridge processors, Intel has extended the OpenCL support to the GPU too!

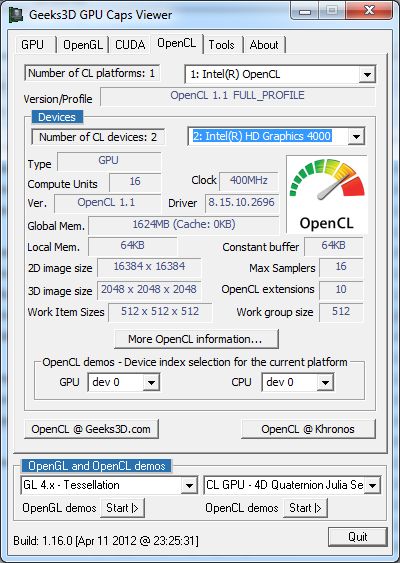

Here what GPU Caps Viewer tells us about Ivy Bridge OpenCL support:

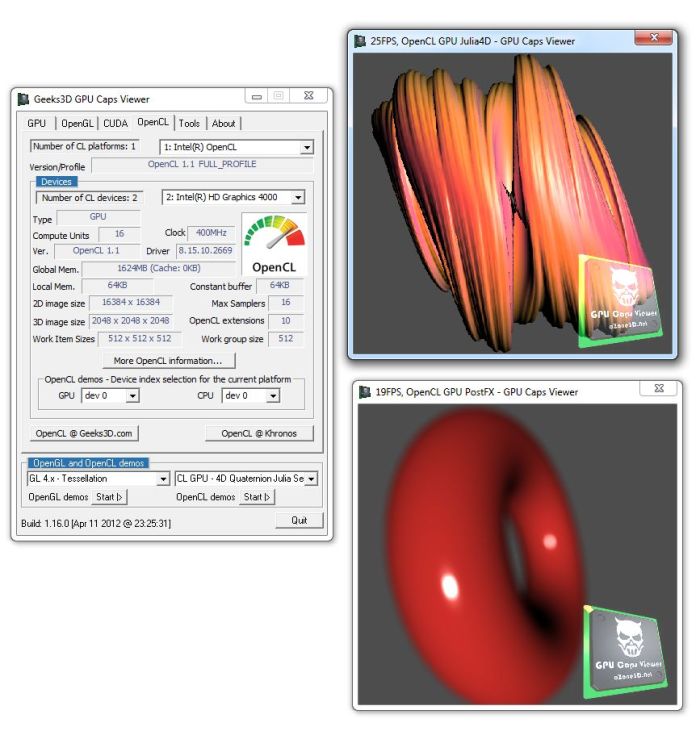

Okay the OpenCL 1.1 support is cool, but do the demos work? Yep man, the demos work quite fine.

Only the mesh deformer demo has a little problem with the normals in the OpenCL GPU version, the OpenCL CPU working properly:

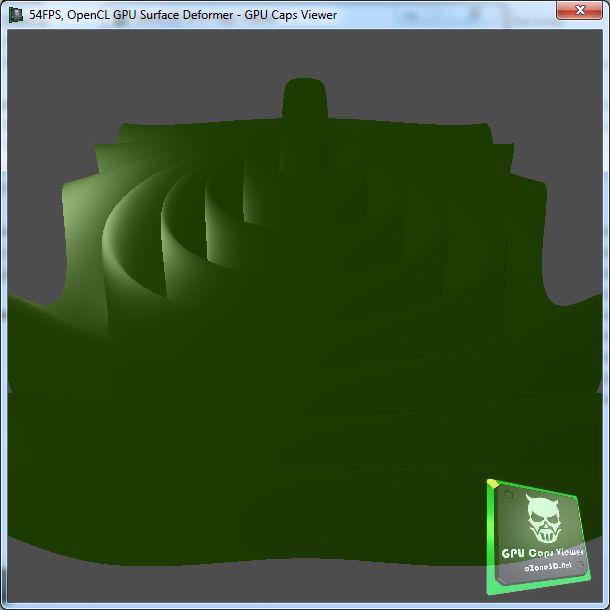

Mesh deformer, OpenCL GPU, incorrect rendering

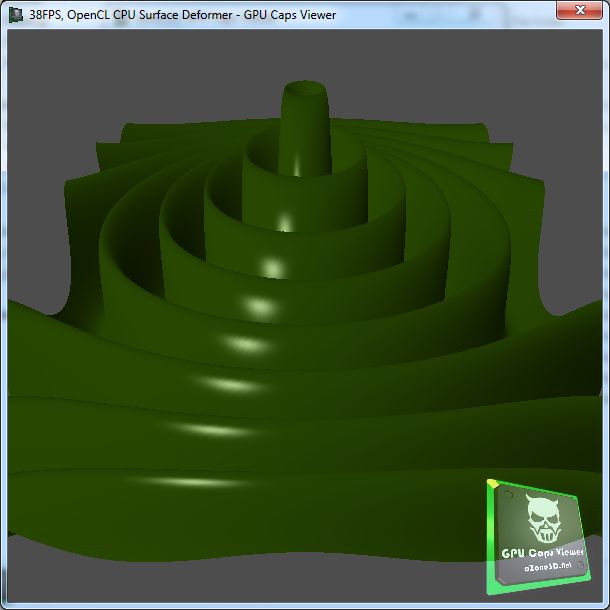

Mesh deformer, OpenCL CPU, correct rendering

Here are some scores:

QJulia 4D demo, 600×600 windowed:
– Ivy Bridge HD 4000 OpenCL GPU test: around 35 FPS
– Ivy Bridge OpenCL CPU test: around 15 FPS
– GeForce GTX 680: around 200 FPS

PostFX demo, 600×600 windowed:
– Ivy Bridge HD 4000 OpenCL GPU test: around 20 FPS
– Ivy Bridge OpenCL CPU test: around 5 FPS
– GeForce GTX 680: around 120 FPS

As you can see, the OpenCL GPU support brings some serious performance gains compared to the CPU support. The double support of OpenCL (CPU + GPU) that is available with Ivy Bridge processors will make happy the users of the upcoming Photoshop CS6.

Another OpenCL test before looking at the OpenCL report. I posted today an article about CLBenchmark, a new OpenCL benchmark. Then it’s a perfect opportunity to test it with the Ivy Bridge processor.

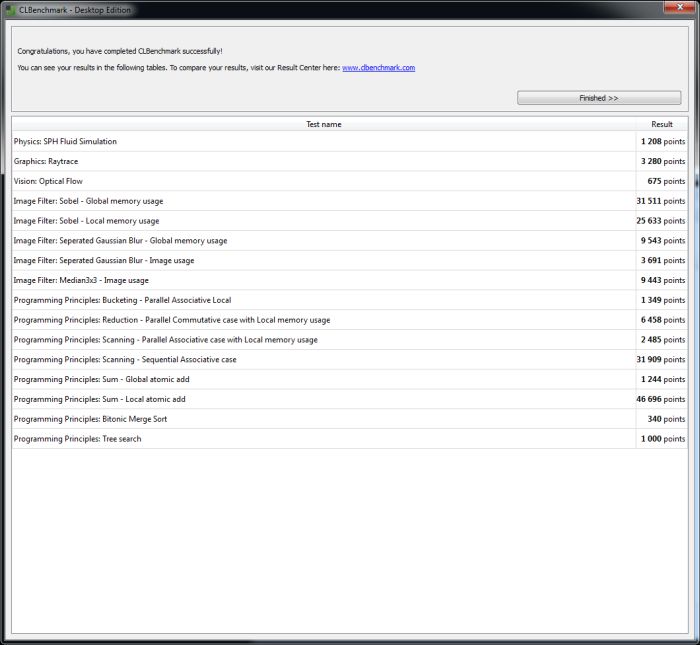

CLBenchmark, Ivy Bridge OpenCL CPU results

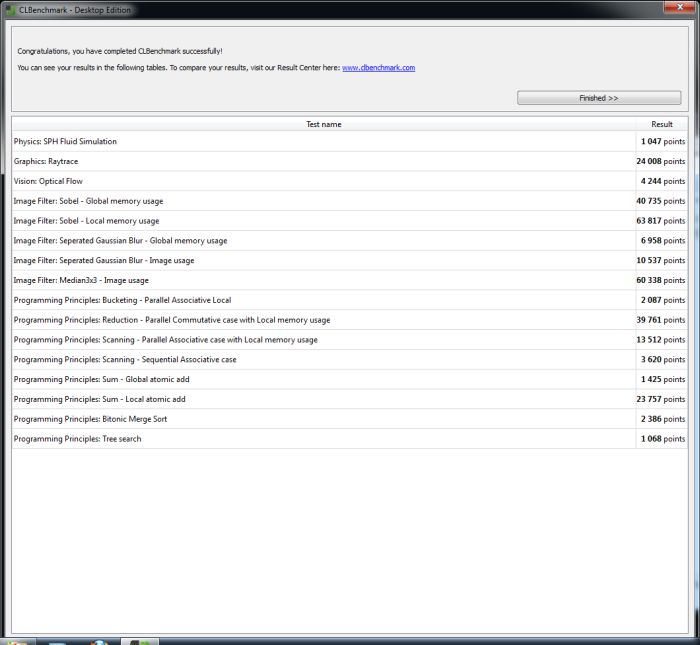

CLBenchmark, Ivy Bridge OpenCL GPU results

As you can see, OpenCL GPU is not always the fastest path for processing data. Depending on the type of algorithms, OpenCL CPU can be more efficient that OpenCL GPU. But in pure graphics processing like the raytracing test (which is highly parallelizable), the OpenCL GPU path is much faster than the CPU path.

Here is the complete OpenCL report provided by GPU Caps Viewer:

- Num OpenCL platforms: 1
- CL_PLATFORM_NAME: Intel(R) OpenCL
- CL_PLATFORM_VENDOR: Intel(R) Corporation
- CL_PLATFORM_VERSION: OpenCL 1.1
- CL_PLATFORM_PROFILE: FULL_PROFILE
- Num devices: 2

	- CL_DEVICE_NAME:                 Genuine Intel(R) CPU  @ 2.20GHz
	- CL_DEVICE_VENDOR: Intel(R) Corporation
	- CL_DRIVER_VERSION: 1.1
	- CL_DEVICE_PROFILE: FULL_PROFILE
	- CL_DEVICE_VERSION: OpenCL 1.1 (Build 30316.30328)
	- CL_DEVICE_TYPE: CPU
	- CL_DEVICE_VENDOR_ID: 0x8086
	- CL_DEVICE_MAX_COMPUTE_UNITS: 8
	- CL_DEVICE_MAX_CLOCK_FREQUENCY: 2200MHz
	- CL_DEVICE_ADDRESS_BITS: 32
	- CL_DEVICE_MAX_MEM_ALLOC_SIZE: 524256KB
	- CL_DEVICE_GLOBAL_MEM_SIZE: 2047MB
	- CL_DEVICE_MAX_PARAMETER_SIZE: 3840
	- CL_DEVICE_GLOBAL_MEM_CACHELINE_SIZE: 64 Bytes
	- CL_DEVICE_GLOBAL_MEM_CACHE_SIZE: 256KB
	- CL_DEVICE_ERROR_CORRECTION_SUPPORT: NO
	- CL_DEVICE_LOCAL_MEM_TYPE: Global
	- CL_DEVICE_LOCAL_MEM_SIZE: 32KB
	- CL_DEVICE_MAX_CONSTANT_BUFFER_SIZE: 128KB
	- CL_DEVICE_MAX_WORK_ITEM_DIMENSIONS: 3
	- CL_DEVICE_MAX_WORK_ITEM_SIZES: [1024 ; 1024 ; 1024]
	- CL_DEVICE_MAX_WORK_GROUP_SIZE: 1024
	- CL_EXEC_NATIVE_KERNEL: 19527224
	- CL_DEVICE_IMAGE_SUPPORT: YES
	- CL_DEVICE_MAX_READ_IMAGE_ARGS: 480
	- CL_DEVICE_MAX_WRITE_IMAGE_ARGS: 480
	- CL_DEVICE_IMAGE2D_MAX_WIDTH: 8192
	- CL_DEVICE_IMAGE2D_MAX_HEIGHT: 8192
	- CL_DEVICE_IMAGE3D_MAX_WIDTH: 2048
	- CL_DEVICE_IMAGE3D_MAX_HEIGHT: 2048
	- CL_DEVICE_IMAGE3D_MAX_DEPTH: 2048
	- CL_DEVICE_MAX_SAMPLERS: 480
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_CHAR: 16
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_SHORT: 8
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_INT: 4
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_LONG: 2
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_FLOAT: 4
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_DOUBLE: 2
	- CL_DEVICE_EXTENSIONS: 11
	- Extensions:
		- cl_khr_fp64
		- cl_khr_icd
		- cl_khr_global_int32_base_atomics
		- cl_khr_global_int32_extended_atomics
		- cl_khr_local_int32_base_atomics
		- cl_khr_local_int32_extended_atomics
		- cl_khr_byte_addressable_store
		- cl_intel_printf
		- cl_ext_device_fission
		- cl_intel_exec_by_local_thread
		- cl_khr_gl_sharing

	- CL_DEVICE_NAME: Intel(R) HD Graphics 4000
	- CL_DEVICE_VENDOR: Intel(R) Corporation
	- CL_DRIVER_VERSION: 8.15.10.2696
	- CL_DEVICE_PROFILE: FULL_PROFILE
	- CL_DEVICE_VERSION: OpenCL 1.1
	- CL_DEVICE_TYPE: GPU
	- CL_DEVICE_VENDOR_ID: 0x8086
	- CL_DEVICE_MAX_COMPUTE_UNITS: 16
	- CL_DEVICE_MAX_CLOCK_FREQUENCY: 400MHz
	- CL_DEVICE_ADDRESS_BITS: 64
	- CL_DEVICE_MAX_MEM_ALLOC_SIZE: 415744KB
	- CL_DEVICE_GLOBAL_MEM_SIZE: 1624MB
	- CL_DEVICE_MAX_PARAMETER_SIZE: 1024
	- CL_DEVICE_GLOBAL_MEM_CACHELINE_SIZE: 64 Bytes
	- CL_DEVICE_GLOBAL_MEM_CACHE_SIZE: 2048KB
	- CL_DEVICE_ERROR_CORRECTION_SUPPORT: NO
	- CL_DEVICE_LOCAL_MEM_TYPE: Local (scratchpad)
	- CL_DEVICE_LOCAL_MEM_SIZE: 64KB
	- CL_DEVICE_MAX_CONSTANT_BUFFER_SIZE: 64KB
	- CL_DEVICE_MAX_WORK_ITEM_DIMENSIONS: 3
	- CL_DEVICE_MAX_WORK_ITEM_SIZES: [512 ; 512 ; 512]
	- CL_DEVICE_MAX_WORK_GROUP_SIZE: 512
	- CL_EXEC_NATIVE_KERNEL: 19527220
	- CL_DEVICE_IMAGE_SUPPORT: YES
	- CL_DEVICE_MAX_READ_IMAGE_ARGS: 128
	- CL_DEVICE_MAX_WRITE_IMAGE_ARGS: 8
	- CL_DEVICE_IMAGE2D_MAX_WIDTH: 16384
	- CL_DEVICE_IMAGE2D_MAX_HEIGHT: 16384
	- CL_DEVICE_IMAGE3D_MAX_WIDTH: 2048
	- CL_DEVICE_IMAGE3D_MAX_HEIGHT: 2048
	- CL_DEVICE_IMAGE3D_MAX_DEPTH: 2048
	- CL_DEVICE_MAX_SAMPLERS: 16
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_CHAR: 1
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_SHORT: 1
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_INT: 1
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_LONG: 1
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_FLOAT: 1
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_DOUBLE: 0
	- CL_DEVICE_EXTENSIONS: 10
	- Extensions:
		- cl_khr_icd
		- cl_khr_global_int32_base_atomics
		- cl_khr_global_int32_extended_atomics
		- cl_khr_local_int32_base_atomics
		- cl_khr_local_int32_extended_atomics
		- cl_khr_gl_sharing
		- cl_khr_d3d10_sharing
		- cl_intel_dx9_media_sharing
		- cl_khr_3d_image_writes
		- cl_khr_byte_addressable_store
