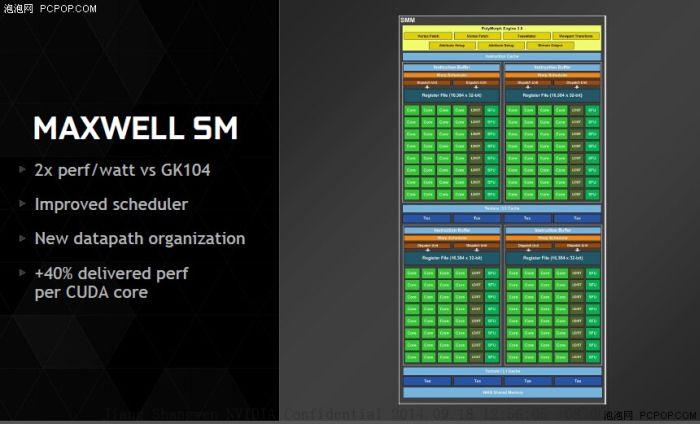

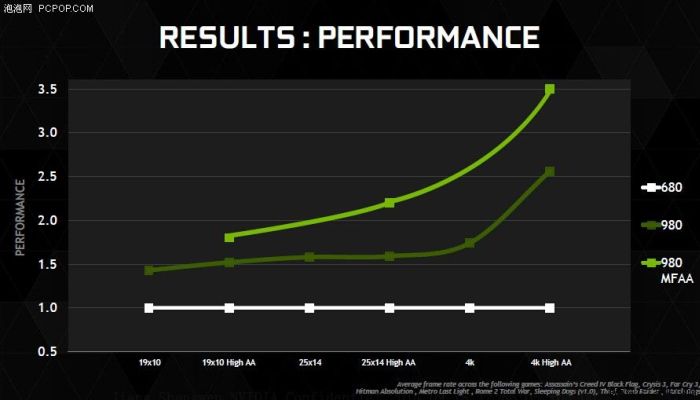

Update (2014.09.18 @ 20h30):

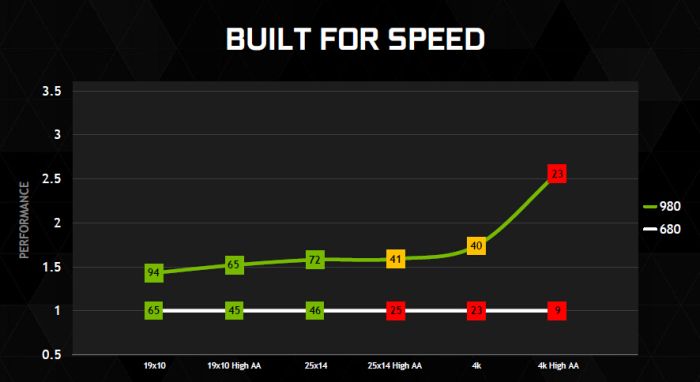

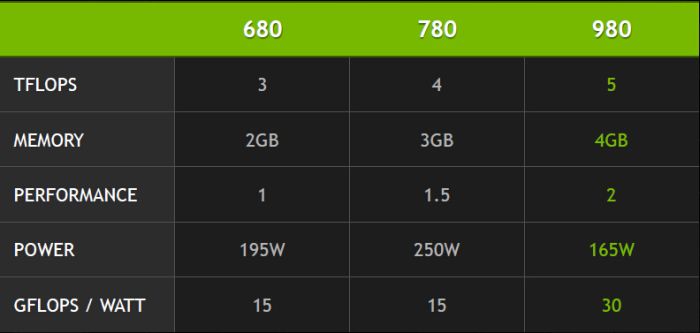

– Maxwell slides part 1!
(source)
– Maxwell slides part 2!
(source)
Update (2014.09.17 @ 12h16):
– GeForce GTX 960: sub $300 Maxwell card.

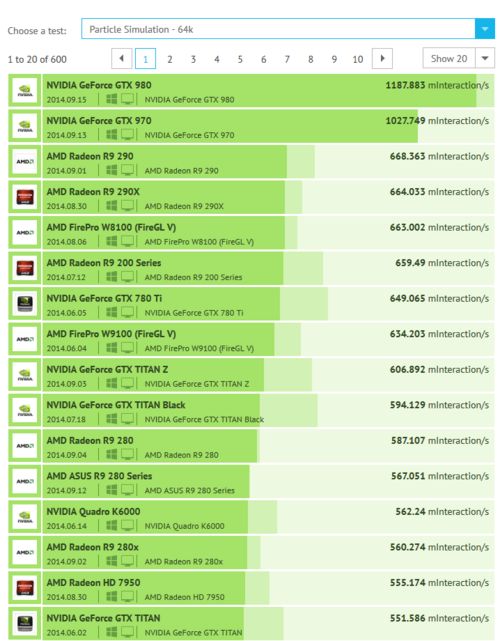

– Maxwell GM204 is a real computing monster (more results HERE):

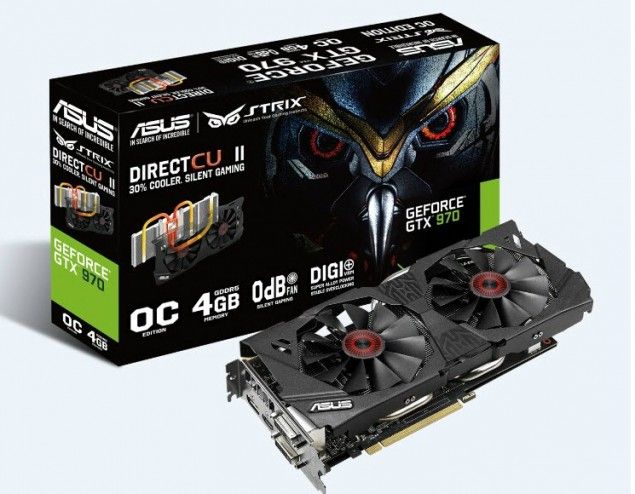

– ASUS GeForce GTX 970:
Update (2014.09.16 @ 13h58 – via):
The GM204 GPU of the GeForce GTX 980 has:
– 64 ROP units – the full GK110 GPU (GTX 780 Ti) has 48 ROP units!
– 128 TMUs – same number than in the GTX 770.
– TDP: 165W (GTX 780: 250W and GTX 770: 230W).
– GPU base clock: 1126MHz
– GPU boost clock: 1216MHz
Here are some higgledy-piggledy news about the upcoming GeForce GTX 970 and GTX 980 that should be launched on September 19 2014.
The GeForce GTX 980 has five display outputs: one DVI, one HDMI and three DisplayPort. Here are some more specifications of the GTX 980:
- GPU: GM204-400 (Second Generation Maxwell architecture), 1126MHz base clock, 1216MHz boost clock, 28nm, 5.2-billion transistor
- CUDA Cores: 2048
- SMX: 16 (one SMX = 128 cores)
- ROPS: 64
- TMUs: 128
- Memory; 4GB GDDR5 256-bit @ 1750MHz real speed or 7000MHz effective speed
- TDP: 165W
- Power connectos: two 6-pin
- Price: USD $599
The GM204-400 GPU (GTX 980):

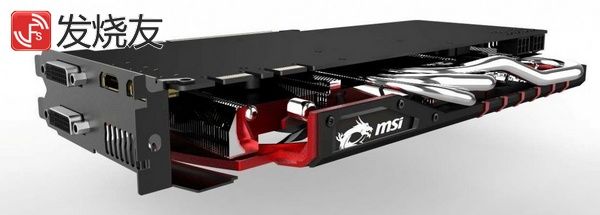

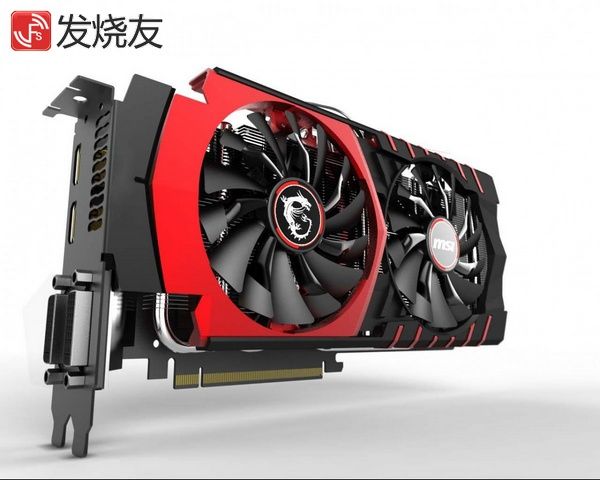

Here is some pictures of MSI GTX 980 Gaming with Twin Frozr V VGA cooler:

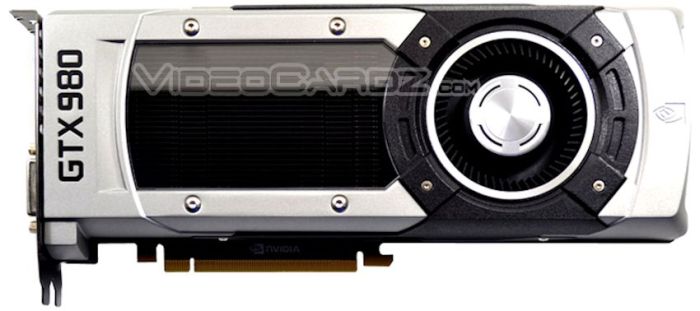

The GTX 980 reference board:
The PCB of the GTX 980:

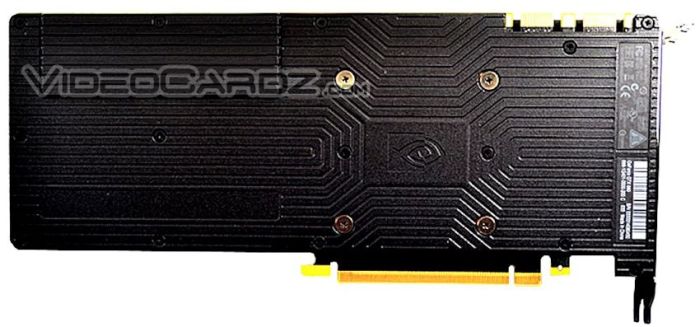

The GTX 980 has a backplate in the reference board:
Now the specs of the GeForce GTX 970:
- GPU: GM204-200 (Maxwell architecture), 28nm
- CUDA Cores: 1664
- SMX: 13 (one SMX = 128 cores)
- ROPS: 32
- Memory; 4GB GDDR5 256-bit
- TDP: 150W
- Power connectos: two 6-pin
- Price: USD $399

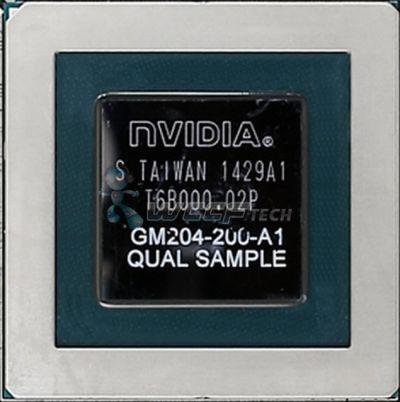

The GM204-200 GPU (GTX 970):
The 3DMark Fire Strike score of the GTX 970:

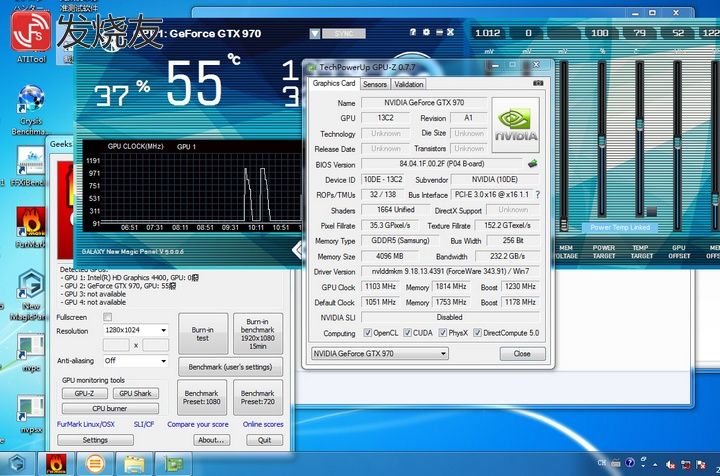

Some information from the R343.91 graphics driver about the GTX 970:
Sources:
– source 1
– source 2
– source 3
– source 4
– source 5
– source 6
http://videocardz.com/52339/nvidia-geforce-gtx-980-has-2048-cuda-cores
2048 Maxwell CUDA cores,
Thanks, updated!
— more CUDA, more FUN 😀
JegX you have typo @ “The GM240 GPU:” – it’s GM204 🙂
And the TDP is >175W, shouldn’t be any more than this.
Thanks, typo fixed. For the TDP, let’s wait the official launch, 175W will be likely the good value.
http://compubench.com/compare.jsp?benchmark=compu20&D1=NVIDIA+GeForce+GTX+980&os1=Windows&api1=cl&D2=NVIDIA+GeForce+GTX+TITAN+Black&cols=2
Wow, Maxwell is a BEAST in compute, Big Kepler is totally defeated. Can’t wait to see Big Maxwell compute performance.
http://videocardz.com/52362/only-at-vc-nvidia-geforce-gtx-980-final-specifications
“What you didn’t know, is that GM204 has 64 Raster Operating Units. Yes, GM204 has 64 ROPs, that’s more than Kepler GK110.
There are 5.2 billion transistors packed into GM204, and the GPU has a die size of 398 mm2.

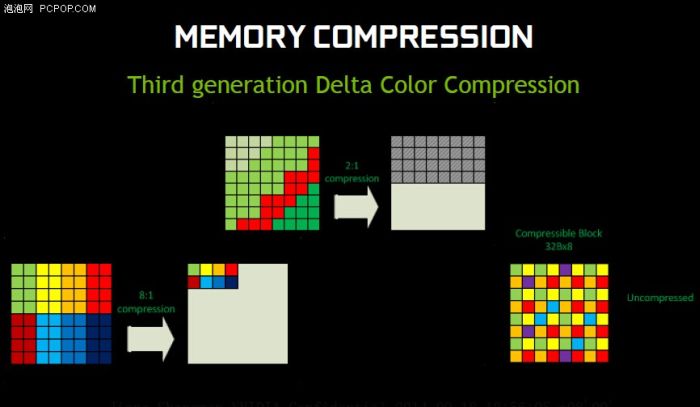

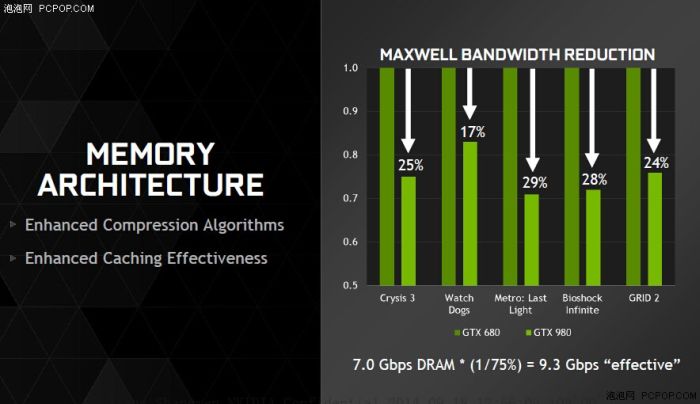

Other interesting technology is Third Generation Delta Color Compression. This technology will help increase memory efficiency, which is definitely required with 256b interface.
The final buzzword for you is Multi-Pixel Programmable Sampling, technology improving sample randomization, and reducing quantization artifacts.
The biggest news here is that GTX 980 has only a TDP of 165W. That’s amazing power reduction compared to 250W GK110.
Last but not least, I can now confirm that GeForce GTX 980 has HDMI 2.0 support.”
WOW, Maxwell is an amazing improvement.
Thanks NV!
Shame there wasn’t time for the newly announced DP1.3 (even though specs were available for several months) but have to wait for implementation and be patient for next gen and make do with HDMI 2.0.
JeGX I know you’ve checked drivers for years, could you please quickly check on 343.91 beta (or await launch drivers) if OpenCL 1.1 on GTX 980 GM204 has LESS instructions vs 780 Gk110. Some were carried over but noticed some were missing but could easily be because an online database I checked is missing entries right now. Besides that, OCL performance is very good 😉
And the $599 posted was at the top end of our MSRRP.
@SMiThaYe: sorry, I can’t check OpenCL support because I don’t have a gtx 980 sample yet. I hope to get one shortly! I will release a new version of MSI Kombustor this morning so if you have a gtx 980, have a look at the two new compute tests…
http://forums.anandtech.com/showpost.php?p=36725156&postcount=76
http://forums.anandtech.com/showpost.php?p=36725162&postcount=77
Finally the Maxwell second generations slides.
Yeah! Updated!
http://videocardz.com/52552/nvidia-geforce-gtx-980-and-gtx-970-press-slides-pictures-charts
Maxwell second gen supports D3D12 feature level 12 features like conservative rasterization!
Waiting for Nvidia to confirm it’s a full D3D12 GPU.
http://www.geforce.com/whats-new/articles/geforce-344-11-whql-driver-released
Nvidia GeForce 344.11 WHQL drivers with GTX 980/GTX 970 support.
Gainward GTX 970 product page
http://www.gainward.com/main/vgapro.php?id=954
gtx 970/980 furmark tests
http://diy.pconline.com.cn/544/5445022_all.html
https://devtalk.nvidia.com/default/topic/776043/cuda-programming-and-performance/whats-new-in-maxwell-sm_52-gtx-9xx-/
Compute Capability 5.2.
