A new version of GPU Caps Viewer, a graphics card / GPU information and monitoring utility, is available.
1 – Download
- GPU Caps Viewer 1.44.3.1 (portable / zip archive)
To ensure the integrity of your download, you can verify the following checksum values (a tool like H4shG3n can help you): GPU_Caps_Viewer_1.44.3.1.zip hash codes: - file size => 13768592 bytes - MD5 => 4f29d0ce52e99bf1ffe9bc9a47b65c9c - SHA1 => 6805ae8f43baa33ed2b3828c104b6fe772c99c0c - SHA256 => f06be01a9bfdad4f176f9eef8542a976c28f02a1c867bb9c57a1f086bb84c90f
- GPU Caps Viewer 1.44.3.1 (setup / installer)
GPU_Caps_Viewer_Setup_v1.44.3.1.exe hash codes: - file size => 11550081 bytes - MD5 => 4899a498698330309da5f3dca04823db - SHA1 => 74ac72e198c3e62b0e17eb2b0c9dacf1ff980bbe - SHA256 => b8d6278b820d5ef9b818b13ea0c553bc46015225d16da7b8d817e8eee8497e73
For feedbacks and bug-reports, you can use the comment section of this post or a forum thread available HERE.
2 – Release Notes
GPU Caps Viewer 1.44.3

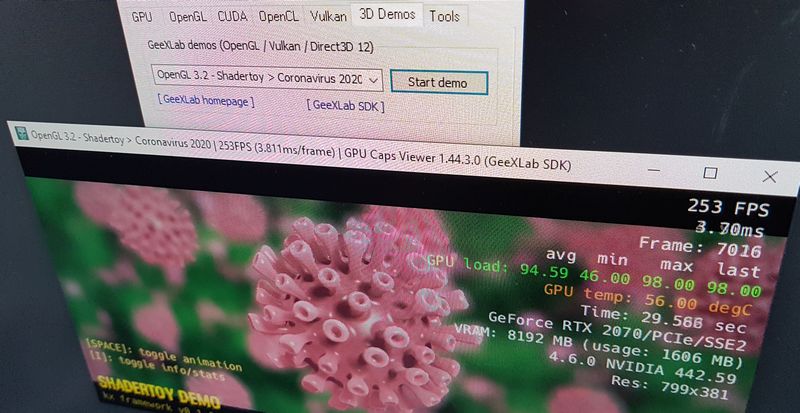

GPU Caps Viewer 1.44.3 is a maintenance release that fixes a bug in the run_gxl_demo command line option. A new GeeXLab demo (Coronavirus-2020) based on a shadertoy demo has been added.
GPU Caps Viewer 1.44.2
GPU Caps Viewer 1.44.2 is a maintenance release that fixes a bug in the Vulkan plugin (GeeXLab demos).
GPU Caps Viewer 1.44.1
GPU Caps Viewer 1.44.1 adds the support of the new Radeon RX 5600 XT and the GeForce RTX 2060 with Turing TU104 GPU (previous RTX 2060 were based on the TU106).
GPU Caps Viewer 1.44.0
This new version of GPU Caps Viewer comes with the support of AMD Navi (RDNA) GPUs. All important hardware sensors are now monitored (GPU temperature, core usage, fan speed, power consumption).

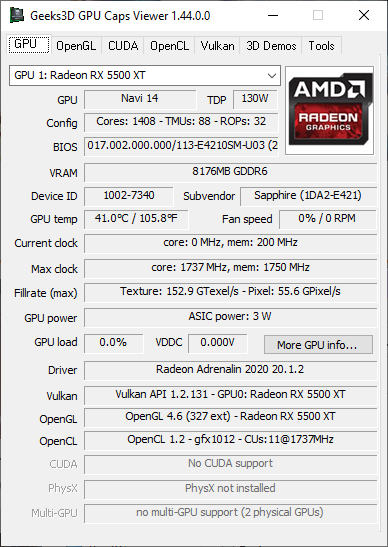

– Radeon RX 5500 XT

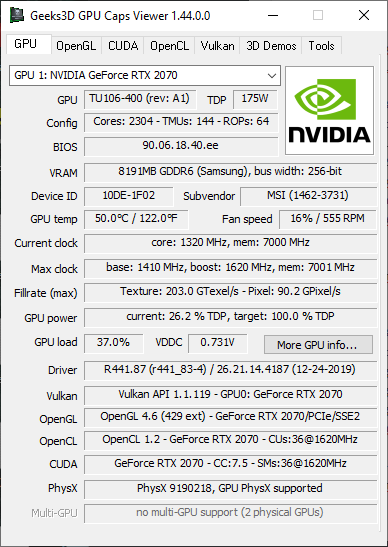

– GeForce RTX 2070
New GeeXLab demos are available: one simple render target / post processing demo in Vulkan, one OpenGL 4.3 demo about compute shader and one OpenGL 4.6 demo about using SPIR-V shaders (this GL/SPIR-V demo works fine on NVIDIA GeForce and Intel GPUs but not on AMD Radeon. I have to investigate about that issue).

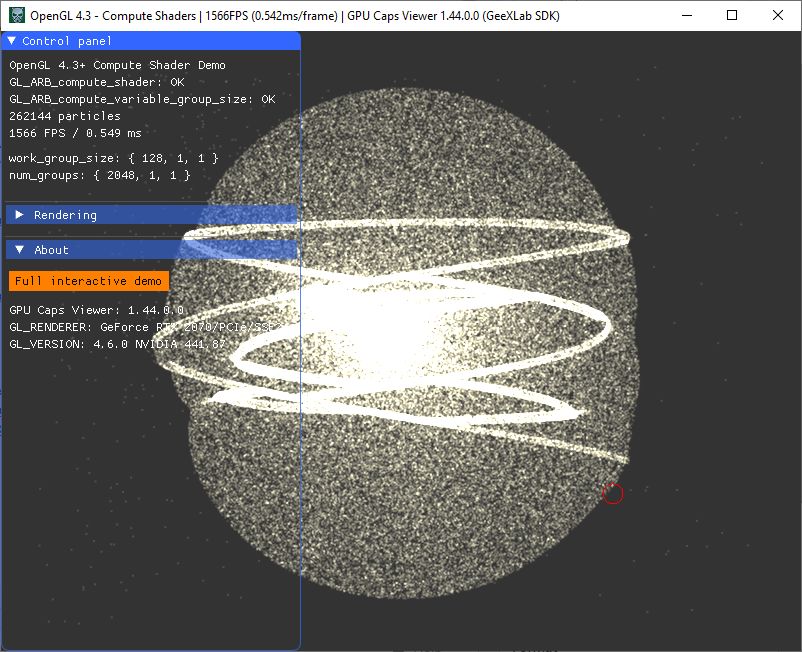

– OpenGL 4.3 compute shaders demo (full demo available here):

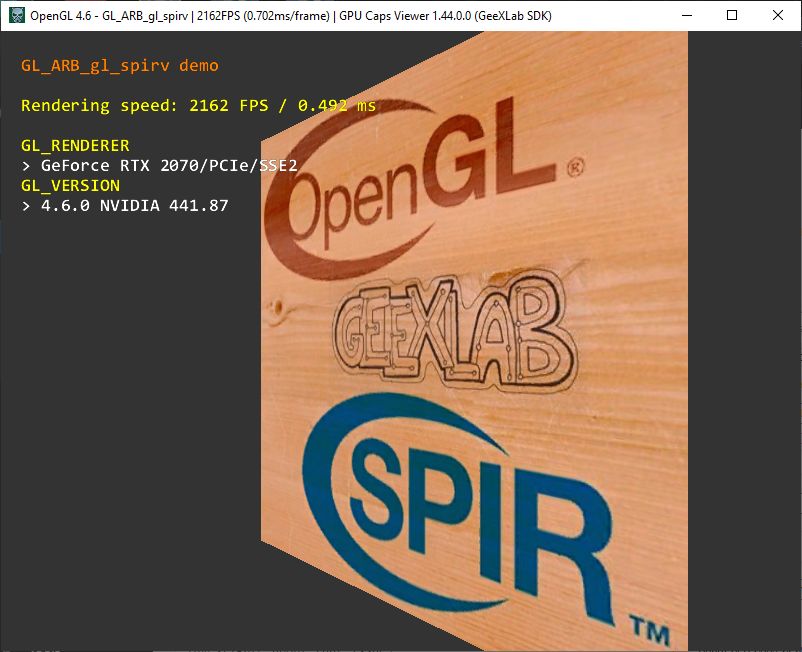

– OpenGL 4.6 GL_ARB_gl_spirv demo:

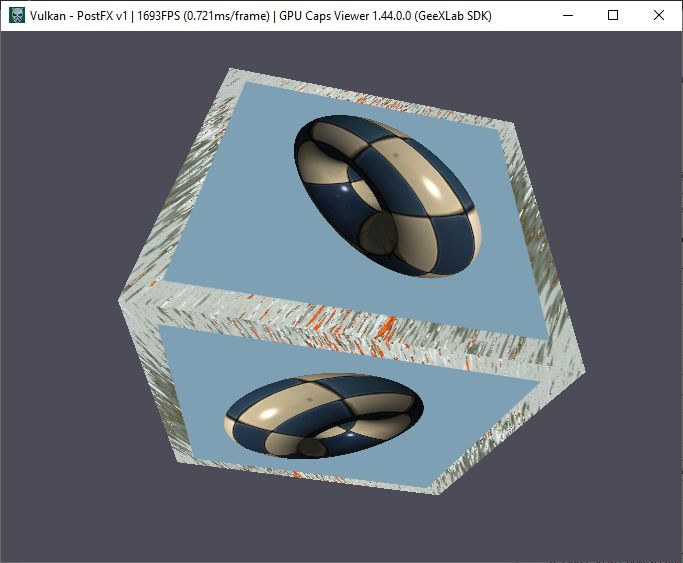

– Vulkan and render targets demo:
3 – Changelog
Version 1.44.3.1 - 2020.03.19 * fixed missing textures for gl32_shadertoy_covid19 demo (see here). Version 1.44.3.0 - 2020.03.14 + added new shadertoy demo gl32_shadertoy_covid19... * fixed a bug in the parsing of the /run_gxl_demo command line option that prevented from launching some demos. ! updated with latest GeeXLab SDK libs (GeeXLab 0.29.17.0). Version 1.44.2.1 - 2020.02.12 * fixed a bug in the GeeXLab SDK to release ImGui resources in Vulkan. Version 1.44.2.0 - 2020.02.12 * fixed a bug in the Vulkan plugin that prevented some resources from being released at the end of a demo [info]. ! updated with latest GeeXLab SDK libs (GeeXLab 0.29.14.0). Version 1.44.1.0 - 2020.01.23 + added support of AMD Radeon RX 5600 XT. + added support of GeForce RTX 2060 with TU104 GPU and GeForce GTX 1650 SUPER. ! updated with latest GeeXLab SDK libs (GeeXLab 0.29.12.0). ! updated: GPU Shark 0.16.1.0 ! updated: ZoomGPU 1.25.1 (GPU monitoring library). Version 1.44.0.0 - 2020.01.17 + added support of GPU monitoring for AMD Navi GPUs. + added support of AMD Radeon RX 5500 XT. + GeeXLab demos: added vk-postfx-v1, gl46-spirv (GL_ARB_gl_spirv) and gl43-compute-shaders-particles demos. * fixed a crash in Vulkan demos (GeeXLab SDK) on NVIDIA GPUs when high DPI scaling was >= 225%. + added data for two old GeForce 9800 GT. ! updated with latest GeeXLab SDK libs (GeeXLab 0.29.11.0). ! updated: GPU Shark 0.16.0.0 ! updated: ZoomGPU 1.25.0 (GPU monitoring library) + NVAPI 440.
thanks for the new version!
Is possible to release GPU-CAPS-VIEWER for Linux?
There’s no plan for a Linux version of GPU Caps Viewer.
Maybe something like GL-Z can help you?
– https://www.geeks3d.com/glz/
– https://www.geeks3d.com/20191004/gl-z-0-5-0-released-raspberry-pi-cpu-and-gpu-monitoring-improved/
Windows security show Trojan:Win32/Detplock when download .EXE version.
It’s a false positive. But I don’t understand why you get this.
Just to be sure, I updated Windows Defender and I scanned GPU_Caps_Viewer_Setup_v1.44.1.0.exe and WD found 0 threat.
Here is my WD version:
Trojan:Win32/Detplock seems a common false positive using WD:
https://github.com/typora/typora-issues/issues/2807
Several demos cannot be run on the command line, although the work OK when launched from the GUI, e.g. GPU_Caps_Viewer.exe /demo_win_width=1920 /demo_win_height=1080 /demo_fullscreen /run_gxl_demo=gl46_spirv /benchmark_log_results /benchmark_duration=10000 /demo_msaa=0
The affected demos are:
gl46_spirv
gl40_tessellation
gl_triangle
vk_postfx01
vk_triangle
vk_triangle_v2
Thanks, I will check this issue as soon as possible.
I have new platform Intel Tiger Lake, but I get the error code that “OpenCL CPU not support on the selected platform , bye” while I running the CL CPU-4D Quaternion Julia Set.
The GPU Cap viewer version is 1.44.3.1
I have same problem on Comet lake platform, could someone help to comment if it’s not support on Intel CPU?
The Download link doesnt work with Firefox 72 – the download is 131KB, had to use download manager.
Program Very nice just checking the opencl support for Intel Graphics
The program only runs on 64-bit based systems! How am I going to see what’s on my windows xp computer?
Wrong, GPU Caps Viewer is a 32-bit application.
But Windows XP support has been dropped last year in v1.41.3.
Maybe the version 1.40.1.0 can help you: https://www.geeks3d.com/dl/show/585
Dwann, please consider upgrading to Windows 7 or 10 and get up to speed with the 21st Century! Similar look but way better and way more stable. Complete 64 bit operating systems are what’s the standard now, not 16 bit operating systems with a 32 bit user interface.
