Intel Graphics Driver 27.20.100.9316 Released (Vulkan 1.2.167)


Intel logo


A new graphics driver has been published by Intel for its GPUs (Intel 6th, 7th, 8th, 9th, 10th and 11th Gen processors) on Windows 10. This new driver (version 27.20.100.9316) brings the following changes:

HIGHLIGHTS:
– Fix for crash seen when launching Outriders on Intel Iris Xe Max graphics.
– Game loading time improvements for Death Stranding on Intel Iris Xe graphics.
– Stability fixes for DaVinci Resolve on Intel Iris Xe Max graphics.

IMPROVEMENTS:
– Game loading time improvements for Death Stranding on Intel Iris Xe graphics.

KEY ISSUES FIXED:
– Crash seen when launching Outriders on Intel Iris Xe Max graphics.
– Performance bottleneck fix for 3DMark Mesh Shader feature test (Mesh Shaders off) on Intel Iris Xe and Xe Max graphics.
– Stability fixes for DaVinci Resolve on Intel Iris Xe Max graphics.
– Intermittent crash or hang seen in Tom Clancy’s Rainbow Six Siege* (DX11), Cyberpunk 2077 (DX12) when starting gameplay on Intel Iris Xe and Xe Max graphics.
– Intermittent crash or hang seen in Battlefield 4 when changing Anti-aliasing deferred settings on Intel Iris Xe graphics.
– Intermittent crash or hang seen in Hunt: Showdown, Call of Duty: Modern Warfare (DX12).
– Black screen observed in Dirt Rally when game play is switched to full screen using ALT + ENTER on Intel Iris Xe graphics.
– Minor graphic anomalies observed in Call of Duty: Modern Warfare* (DX12) while game loading in cutscenes and during gameplay on Intel Iris Xe graphics.
– Minor graphic anomalies observed during gameplay in The Witcher 3: Wild Hunt on Intel Iris Xe and Xe Max graphics.
– Corruption or crash seen in Talos Principle (Vulkan) after changing game settings on Intel Iris Xe Max graphics.
– Crash seen while starting new game in Crysis: Remastered on 10th Generation Intel Core™ processors with Intel Iris Plus graphics.
– No Visual difference seen when changing Texture filtering in World of Warcraft: Shadowlands (DX12).
– Teamfight Tactics game may disconnect when starting gameplay on Intel Iris Xe graphics.
– LCD may show garbage during WMV movie playback with high CPU usage on Intel Iris Xe graphics.
– Brightness may not update as expected while adjusting brightness in Battery mode on Intel Iris Xe graphics.
– Flickering may be observed in PC screen mode only on Intel Iris Xe graphics.
– System may not show output when connected through dock with multiple monitors on Intel Iris Xe graphics.
– Black screen observed after unplugging dock with three monitors in combined mode.



Downloads



v27.20.100.9316

Quick test of this
driver on an Intel Core i7-8700K (with an UHD 630 GPU):

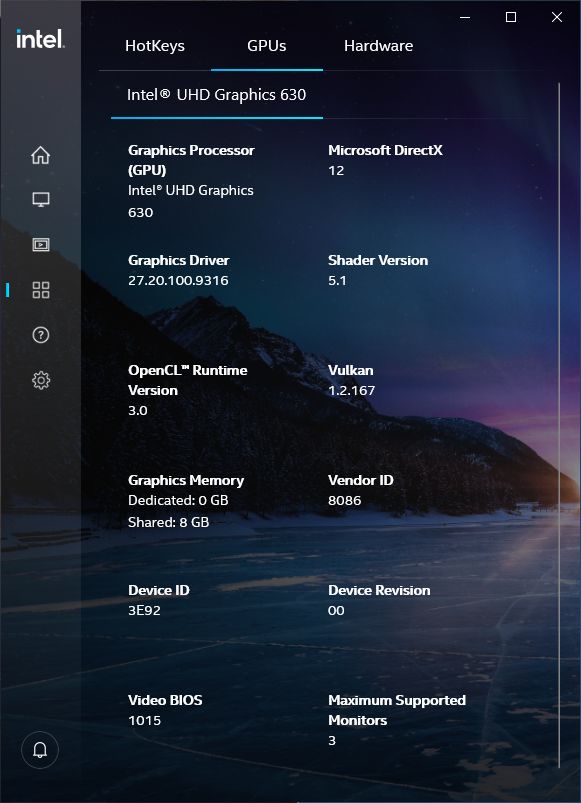

– Intel control panel information:
Intel UHD Graphics driver - software information

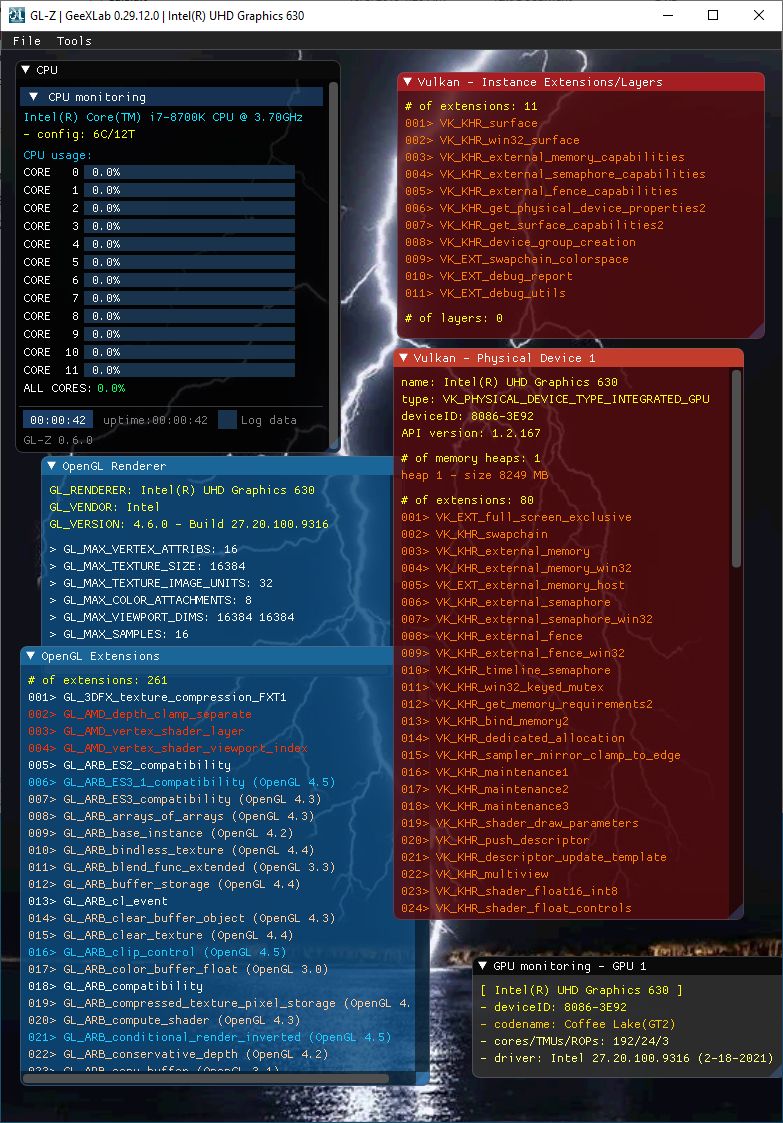

– GL-Z:
Intel UHD Graphics driver - GL-Z



OpenGL support

v27.20.100.9316

This driver exposes OpenGL 4.6 with 261 OpenGL extensions. Same support than v8783.

- GL_VENDOR: Intel
- GL_RENDERER: Intel(R) UHD Graphics 630
- GL_VERSION: 4.6.0 - Build 27.20.100.9316
- GL_SHADING_LANGUAGE_VERSION: 4.60 - Build 27.20.100.9316
- OpenGL Extensions: 261 extensions (GL=239 and WGL=22)

Vulkan support

v27.20.100.9316

This driver exposes Vulkan 1.2.167. No new device extension (still 80) compared to previous v9126:

  - [Vulkan device 0]: Intel(R) UHD Graphics 630
    - API version: 1.2.167
    - vendorID: 32902
    - deviceID: 16018
    - driver version: 1647716
    - driver properties (VK_KHR_driver_properties):
      -> driver name: Intel Corporation
      -> driver ID: VK_DRIVER_ID_INTEL_PROPRIETARY_WINDOWS_KHR (5)
      -> driver conformance version: 1.2.2.3:
      -> driver info: Intel driver
  - memory heap count: 2
    - heap1: 4124MB
    - heap2: 4124MB
  - memory type count: 4
    - mem type 0 - heap index : 0 - property flag : 1
      > mem property: VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
    - mem type 1 - heap index : 1 - property flag : 7
      > mem property: VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_COHERENT_BIT
    - mem type 2 - heap index : 1 - property flag : 15
      > mem property: VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_COHERENT_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_CACHED_BIT
    - mem type 3 - heap index : 1 - property flag : 1
      > mem property: VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
  - extensions: 80
    - VK_EXT_full_screen_exclusive (version: 4)
    - VK_KHR_swapchain (version: 70)
    - VK_KHR_external_memory (version: 1)
    - VK_KHR_external_memory_win32 (version: 1)
    - VK_EXT_external_memory_host (version: 1)
    - VK_KHR_external_semaphore (version: 1)
    - VK_KHR_external_semaphore_win32 (version: 1)
    - VK_KHR_external_fence (version: 1)
    - VK_KHR_external_fence_win32 (version: 1)
    - VK_KHR_timeline_semaphore (version: 2)
    - VK_KHR_win32_keyed_mutex (version: 1)
    - VK_KHR_get_memory_requirements2 (version: 1)
    - VK_KHR_bind_memory2 (version: 1)
    - VK_KHR_dedicated_allocation (version: 1)
    - VK_KHR_sampler_mirror_clamp_to_edge (version: 3)
    - VK_KHR_maintenance1 (version: 1)
    - VK_KHR_maintenance2 (version: 1)
    - VK_KHR_maintenance3 (version: 1)
    - VK_KHR_shader_draw_parameters (version: 1)
    - VK_KHR_push_descriptor (version: 1)
    - VK_KHR_descriptor_update_template (version: 1)
    - VK_KHR_multiview (version: 1)
    - VK_KHR_shader_float16_int8 (version: 1)
    - VK_KHR_shader_float_controls (version: 4)
    - VK_KHR_16bit_storage (version: 1)
    - VK_KHR_8bit_storage (version: 1)
    - VK_EXT_shader_subgroup_ballot (version: 1)
    - VK_EXT_shader_subgroup_vote (version: 1)
    - VK_KHR_storage_buffer_storage_class (version: 1)
    - VK_KHR_variable_pointers (version: 1)
    - VK_KHR_relaxed_block_layout (version: 1)
    - VK_EXT_sampler_filter_minmax (version: 2)
    - VK_KHR_device_group (version: 4)
    - VK_EXT_post_depth_coverage (version: 1)
    - VK_EXT_shader_viewport_index_layer (version: 1)
    - VK_EXT_shader_stencil_export (version: 1)
    - VK_EXT_conservative_rasterization (version: 1)
    - VK_EXT_sample_locations (version: 1)
    - VK_KHR_draw_indirect_count (version: 1)
    - VK_KHR_image_format_list (version: 1)
    - VK_EXT_vertex_attribute_divisor (version: 3)
    - VK_EXT_descriptor_indexing (version: 2)
    - VK_EXT_inline_uniform_block (version: 1)
    - VK_KHR_create_renderpass2 (version: 1)
    - VK_KHR_swapchain_mutable_format (version: 1)
    - VK_KHR_depth_stencil_resolve (version: 1)
    - VK_KHR_driver_properties (version: 1)
    - VK_KHR_vulkan_memory_model (version: 3)
    - VK_EXT_conditional_rendering (version: 2)
    - VK_EXT_depth_clip_enable (version: 1)
    - VK_EXT_scalar_block_layout (version: 1)
    - VK_KHR_imageless_framebuffer (version: 1)
    - VK_KHR_buffer_device_address (version: 1)
    - VK_EXT_buffer_device_address (version: 2)
    - VK_EXT_host_query_reset (version: 1)
    - VK_NV_device_diagnostic_checkpoints (version: 2)
    - VK_KHR_separate_depth_stencil_layouts (version: 1)
    - VK_KHR_shader_clock (version: 1)
    - VK_KHR_spirv_1_4 (version: 1)
    - VK_KHR_uniform_buffer_standard_layout (version: 1)
    - VK_EXT_separate_stencil_usage (version: 1)
    - VK_EXT_fragment_shader_interlock (version: 1)
    - VK_EXT_index_type_uint8 (version: 1)
    - VK_KHR_shader_subgroup_extended_types (version: 1)
    - VK_EXT_line_rasterization (version: 1)
    - VK_EXT_memory_budget (version: 1)
    - VK_EXT_texel_buffer_alignment (version: 1)
    - VK_INTEL_performance_query (version: 2)
    - VK_EXT_subgroup_size_control (version: 2)
    - VK_EXT_shader_demote_to_helper_invocation (version: 1)
    - VK_EXT_pipeline_creation_feedback (version: 1)
    - VK_EXT_pipeline_creation_cache_control (version: 3)
    - VK_KHR_pipeline_executable_properties (version: 1)
    - VK_EXT_transform_feedback (version: 1)
    - VK_EXT_extended_dynamic_state (version: 1)
    - VK_EXT_custom_border_color (version: 12)
    - VK_EXT_robustness2 (version: 1)
    - VK_EXT_calibrated_timestamps (version: 1)
    - VK_EXT_shader_atomic_float (version: 1)
    - VK_KHR_shader_non_semantic_info (version: 1)
  - device layers: 0
  - device features:
    - robustBufferAccess: true
    - fullDrawIndexUint32: true
    - imageCubeArray: true
    - independentBlend: true
    - geometryShader: true
    - tessellationShader: true
    - sampleRateShading: true
    - dualSrcBlend: true
    - logicOp: true
    - multiDrawIndirect: true
    - drawIndirectFirstInstance: true
    - depthClamp: true
    - depthBiasClamp: true
    - fillModeNonSolid: true
    - depthBounds: false
    - wideLines: true
    - largePoints: true
    - alphaToOne: true
    - multiViewport: true
    - samplerAnisotropy: true
    - textureCompressionETC2: true
    - textureCompressionASTC_LDR: true
    - textureCompressionBC: true
    - occlusionQueryPrecise: true
    - pipelineStatisticsQuery: true
    - vertexPipelineStoresAndAtomics: true
    - fragmentStoresAndAtomics: true
    - shaderTessellationAndGeometryPointSize: true
    - shaderImageGatherExtended: true
    - shaderStorageImageExtendedFormats: true
    - shaderStorageImageMultisample: true
    - shaderStorageImageReadWithoutFormat: false
    - shaderStorageImageWriteWithoutFormat: true
    - shaderUniformBufferArrayDynamicIndexing: true
    - shaderSampledImageArrayDynamicIndexing: true
    - shaderStorageBufferArrayDynamicIndexing: true
    - shaderStorageImageArrayDynamicIndexing: true
    - shaderClipDistance: true
    - shaderCullDistance: true
    - shaderFloat64: true
    - shaderInt64: true
    - shaderInt16: true
    - shaderResourceResidency: true
    - shaderResourceMinLod: false
    - sparseBinding: true
    - sparseResidencyBuffer: true
    - sparseResidencyImage2D: true
    - sparseResidencyImage3D: true
    - sparseResidency2Samples: true
    - sparseResidency4Samples: true
    - sparseResidency8Samples: true
    - sparseResidency16Samples: true
    - sparseResidencyAliased: true
    - variableMultisampleRate: true
    - inheritedQueries: true
  - device limits
    - maxImageDimension1D: 16384
    - maxImageDimension2D: 16384
    - maxImageDimension3D: 2048
    - maxImageDimensionCube: 16384
    - maxImageArrayLayers: 2048
    - maxTexelBufferElements: 134217728
    - maxUniformBufferRange: 4294967295
    - maxStorageBufferRange: 4294967295
    - maxPushConstantsSize: 256
    - maxMemoryAllocationCount: 2111936
    - maxSamplerAllocationCount: 4000
    - bufferImageGranularity: 1
    - sparseAddressSpaceSize: 17523466567680
    - maxBoundDescriptorSets: 8
    - maxPerStageDescriptorSamplers: 64
    - maxPerStageDescriptorUniformBuffers: 200
    - maxPerStageDescriptorSampledImages: 200
    - maxPerStageDescriptorStorageImages: 16
    - maxPerStageDescriptorInputAttachments: 8
    - maxPerStageResources: 200
    - maxDescriptorSetSamplers: 576
    - maxDescriptorSetUniformBuffers: 1800
    - maxDescriptorSetUniformBuffersDynamic: 16
    - maxDescriptorSetStorageBuffers: 1800
    - maxDescriptorSetStorageBuffersDynamic: 16
    - maxDescriptorSetSampledImages: 1800
    - maxDescriptorSetStorageImages: 144
    - maxDescriptorSetInputAttachments: 8
    - maxVertexInputAttributes: 32
    - maxVertexInputBindings: 32
    - maxVertexInputAttributeOffset: 2047
    - maxVertexInputBindingStride: 4095
    - maxVertexOutputComponents: 128
    - maxTessellationGenerationLevel: 64
    - maxTessellationPatchSize: 32
    - maxTessellationControlPerVertexInputComponents: 128
    - maxTessellationControlPerVertexOutputComponents: 128
    - maxTessellationControlPerPatchOutputComponents: 120
    - maxTessellationControlTotalOutputComponents: 4096
    - maxTessellationEvaluationInputComponents: 128
    - maxTessellationEvaluationOutputComponents: 128
    - maxGeometryShaderInvocations: 32
    - maxGeometryInputComponents: 128
    - maxGeometryOutputComponents: 128
    - maxGeometryOutputVertices: 256
    - maxGeometryTotalOutputComponents: 1024
    - maxFragmentInputComponents: 128
    - maxFragmentOutputAttachments: 8
    - maxFragmentDualSrcAttachments: 1
    - maxFragmentCombinedOutputResources: 16
    - maxComputeSharedMemorySize: 32768
    - maxComputeWorkGroupCount: [65536; 65536; 65536]
    - maxComputeWorkGroupInvocations: 1024
    - maxComputeWorkGroupSize: [1024; 1024; 64]
    - subPixelPrecisionBits: 8
    - subTexelPrecisionBits: 8
    - mipmapPrecisionBits: 8
    - maxDrawIndexedIndexValue: 4294967295
    - maxDrawIndirectCount: 4294967295
    - maxSamplerLodBias: 16.000000
    - maxSamplerAnisotropy: 16.000000
    - maxViewports: 16
    - maxViewportDimensions: [32768; 32768]
    - viewportBoundsRange: [-65536.000000 ; 65535.000000]
    - viewportSubPixelBits: 8
    - minMemoryMapAlignment: 64
    - minTexelBufferOffsetAlignment: 64
    - minUniformBufferOffsetAlignment: 64
    - minStorageBufferOffsetAlignment: 64
    - minTexelOffset: 4294967288
    - maxTexelOffset: 7
    - minTexelGatherOffset: 4294967264
    - maxTexelGatherOffset: 31
    - minInterpolationOffset: -0.500000
    - maxInterpolationOffset: 0.437500
    - subPixelInterpolationOffsetBits: 4
    - maxFramebufferWidth: 16384
    - maxFramebufferHeight: 16384
    - maxFramebufferLayers: 2048
    - framebufferColorSampleCounts: 31
    - framebufferDepthSampleCounts: 31
    - framebufferStencilSampleCounts: 31
    - framebufferNoAttachmentsSampleCounts: 31
    - maxColorAttachments: 8
    - sampledImageColorSampleCounts: 31
    - sampledImageIntegerSampleCounts: 31
    - sampledImageDepthSampleCounts: 31
    - sampledImageStencilSampleCounts: 31
    - storageImageSampleCounts: 31
    - maxSampleMaskWords: 1
    - timestampComputeAndGraphics: 1
    - timestampPeriod: 83.333000
    - maxClipDistances: 8
    - maxCullDistances: 8
    - maxCombinedClipAndCullDistances: 8
    - discreteQueuePriorities: 2
    - pointSizeRange: [0.125000 ; 255.875000]
    - lineWidthRange: [0.000000 ; 7.992188]
    - pointSizeGranularity: 0.125000
    - lineWidthGranularity: 0.007812
    - strictLines: 0
    - standardSampleLocations: 1
    - optimalBufferCopyOffsetAlignment: 64
    - optimalBufferCopyRowPitchAlignment: 64
    - nonCoherentAtomSize: 1



OpenCL support

v27.20.100.9316

This driver exposes OpenCL 3.0 with 58 device extensions. This is the same support than v9168:

- Num OpenCL platforms: 1
- CL_PLATFORM_NAME: Intel(R) OpenCL HD Graphics
- CL_PLATFORM_VENDOR: Intel(R) Corporation
- CL_PLATFORM_VERSION: OpenCL 3.0
- CL_PLATFORM_PROFILE: FULL_PROFILE
- Num devices: 1
  - CL_DEVICE_NAME: Intel(R) UHD Graphics 630
  - CL_DEVICE_VENDOR: Intel(R) Corporation
  - CL_DRIVER_VERSION: 27.20.100.9316
  - CL_DEVICE_PROFILE: FULL_PROFILE
  - CL_DEVICE_VERSION: OpenCL 3.0 NEO
  - CL_DEVICE_TYPE: GPU
  - CL_DEVICE_VENDOR_ID: 0x8086
  - CL_DEVICE_MAX_COMPUTE_UNITS: 24
  - CL_DEVICE_MAX_CLOCK_FREQUENCY: 1200MHz
  - CL_DEVICE_ADDRESS_BITS: 32
  - CL_DEVICE_MAX_MEM_ALLOC_SIZE: 838860KB
  - CL_DEVICE_GLOBAL_MEM_SIZE: 1638MB
  - CL_DEVICE_MAX_PARAMETER_SIZE: 2048
  - CL_DEVICE_GLOBAL_MEM_CACHELINE_SIZE: 64 Bytes
  - CL_DEVICE_GLOBAL_MEM_CACHE_SIZE: 512KB
  - CL_DEVICE_ERROR_CORRECTION_SUPPORT: NO
  - CL_DEVICE_LOCAL_MEM_TYPE: Local (scratchpad)
  - CL_DEVICE_LOCAL_MEM_SIZE: 64KB
  - CL_DEVICE_MAX_CONSTANT_BUFFER_SIZE: 838860KB
  - CL_DEVICE_MAX_WORK_ITEM_DIMENSIONS: 3
  - CL_DEVICE_MAX_WORK_ITEM_SIZES: [256 ; 256 ; 256]
  - CL_DEVICE_MAX_WORK_GROUP_SIZE: 256
  - CL_EXEC_NATIVE_KERNEL: 14271204
  - CL_DEVICE_IMAGE_SUPPORT: YES
  - CL_DEVICE_MAX_READ_IMAGE_ARGS: 128
  - CL_DEVICE_MAX_WRITE_IMAGE_ARGS: 128
  - CL_DEVICE_IMAGE2D_MAX_WIDTH: 16384
  - CL_DEVICE_IMAGE2D_MAX_HEIGHT: 16384
  - CL_DEVICE_IMAGE3D_MAX_WIDTH: 16384
  - CL_DEVICE_IMAGE3D_MAX_HEIGHT: 16384
  - CL_DEVICE_IMAGE3D_MAX_DEPTH: 2048
  - CL_DEVICE_MAX_SAMPLERS: 16
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_CHAR: 16
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_SHORT: 8
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_INT: 4
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_LONG: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_FLOAT: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_DOUBLE: 1
  - CL_DEVICE_EXTENSIONS: 58
  - Extensions:
    - cl_khr_byte_addressable_store
    - cl_khr_fp16
    - cl_khr_global_int32_base_atomics
    - cl_khr_global_int32_extended_atomics
    - cl_khr_icd
    - cl_khr_local_int32_base_atomics
    - cl_khr_local_int32_extended_atomics
    - cl_intel_subgroups
    - cl_intel_required_subgroup_size
    - cl_intel_subgroups_short
    - cl_khr_spir
    - cl_intel_accelerator
    - cl_intel_driver_diagnostics
    - cl_khr_priority_hints
    - cl_khr_throttle_hints
    - cl_khr_create_command_queue
    - cl_intel_subgroups_char
    - cl_intel_subgroups_long
    - cl_khr_il_program
    - cl_intel_mem_force_host_memory
    - cl_khr_subgroup_extended_types
    - cl_khr_subgroup_non_uniform_vote
    - cl_khr_subgroup_ballot
    - cl_khr_subgroup_non_uniform_arithmetic
    - cl_khr_subgroup_shuffle
    - cl_khr_subgroup_shuffle_relative
    - cl_khr_subgroup_clustered_reduce
    - cl_khr_fp64
    - cl_khr_subgroups
    - cl_intel_spirv_device_side_avc_motion_estimation
    - cl_intel_spirv_media_block_io
    - cl_intel_spirv_subgroups
    - cl_khr_spirv_no_integer_wrap_decoration
    - cl_intel_unified_shared_memory_preview
    - cl_khr_mipmap_image
    - cl_khr_mipmap_image_writes
    - cl_intel_planar_yuv
    - cl_intel_packed_yuv
    - cl_intel_motion_estimation
    - cl_intel_device_side_avc_motion_estimation
    - cl_intel_advanced_motion_estimation
    - cl_khr_int64_base_atomics
    - cl_khr_int64_extended_atomics
    - cl_khr_image2d_from_buffer
    - cl_khr_depth_images
    - cl_khr_3d_image_writes
    - cl_intel_media_block_io
    - cl_khr_gl_sharing
    - cl_khr_gl_depth_images
    - cl_khr_gl_event
    - cl_khr_gl_msaa_sharing
    - cl_intel_dx9_media_sharing
    - cl_khr_dx9_media_sharing
    - cl_khr_d3d10_sharing
    - cl_khr_d3d11_sharing
    - cl_intel_d3d11_nv12_media_sharing
    - cl_intel_unified_sharing
    - cl_intel_simultaneous_sharing

—
via (9316)

Related posts:

  1. Intel Graphics Driver 27.20.100.9168 Released (Vulkan 1.2.162)
  2. Intel Graphics Driver 27.20.100.9126 Released (Vulkan 1.2.162)
  3. Intel Graphics Driver 26.20.100.7372 Released (Vulkan 1.1.120)
  4. Intel Graphics Driver 26.20.100.7463 Released (Vulkan 1.1.125)
  5. Intel Graphics Driver 27.20.100.8476 Released (Vulkan 1.2.145)

2 thoughts on “Intel Graphics Driver 27.20.100.9316 Released (Vulkan 1.2.167)”

  1. Stefan

    Driver has been re-released with Rocket Lake support

    %INTEL_DEV_4C8A% = iRKLD_w10_DS, PCI\VEN_8086&DEV_4C8A
    %INTEL_DEV_4C8B% = iRKLD_w10_DS, PCI\VEN_8086&DEV_4C8B
    %INTEL_DEV_4C90% = iRKLD_w10_DS, PCI\VEN_8086&DEV_4C90

    INTEL_DEV_4C8A = “Intel(R) UHD Graphics” “750”
    INTEL_DEV_4C8B = “Intel(R) UHD Graphics” “730”
    INTEL_DEV_4C90 = “Intel(R) UHD Graphics” “P750”

Comments are closed.
