Intel Graphics Driver 31.0.101.4499 for Arc and Integrated GPUs (*** UPDATED: v101.4514 ***)

Intel Arc logo

Intel has released, some days ago, a new beta graphics driver for its Arc GPUs (Arc A380, A770, A750, A310, A770M, A550M, A730M, A370M, A350M) and integrated GPUs (11th Gen, 12th Gen and 13th Gen). Here are the main changes:

GAMING HIGHLIGHTS:
Intel Game On Driver support on Intel Arc A-series Graphics for:
- Counter-Strike 2
- F1 23
- Aliens: Dark Descent
- Forever Skies

Game performance improvements versus Intel 31.0.101.4382 software driver for:
- Counter-Strike 2* (DX11)
  - Up to 10% uplift at 1080p with Very High settings.
  - Up to 8% uplift at 1440p with High settings.
- F1 23 (DX12)
  - Up to 33% uplift at 1080p with Ultra High settings with Ray Tracing off
  - Up to 18% uplift at 1080p with Ultra High settings with Ray Tracing on
  - Up to 27% uplift at 1440p with High settings
- Destiny 2 (DX11)
  - Up to 11% uplift at 1080p with Highest settings

FIXED ISSUES:
Intel Arc Graphics Products:
- Destiny 2 (DX11) may experience less than expected performance or stuttering during gameplay.
- A blank screen or error may be observed in certain applications when embedding content using WebView2.



UPDATE (2023.06.22): v31.0.101.4502

FIXED ISSUES:
Intel Arc Graphics Products:
- iTunes may experience an application crash during launch
- A blank screen or error may be observed in certain applications when embedding content using WebView2



UPDATE (2023.06.29): v31.0.101.4514

GAMING HIGHLIGHTS:
Intel Game On Driver support on Intel Arc A-series Graphics for:
- AEW: Fight Forever
- Layers of Fear

Game performance improvements versus Intel 31.0.101.4502 software driver for:
- Assassin’s Creed Unity* (DX11)
  - Up to 271% uplift at 1080p with Very High settings
  - Up to 313% uplift at 1440p with High settings

- F1 22* (DX12)
  - Up to 36% uplift at 1080p with High settings
  - Up to 20% uplift at 1440p with High settings
  - Up to 10% uplift at 1080p with Ultra High settings and all Ray Tracing settings on

- Deathloop* (DX12)
  - Up to 10% uplift at 1080p with Ultra settings
  - Up to 8% uplift at 1440p with Very High settings



Downloads



v31.0.101.4499

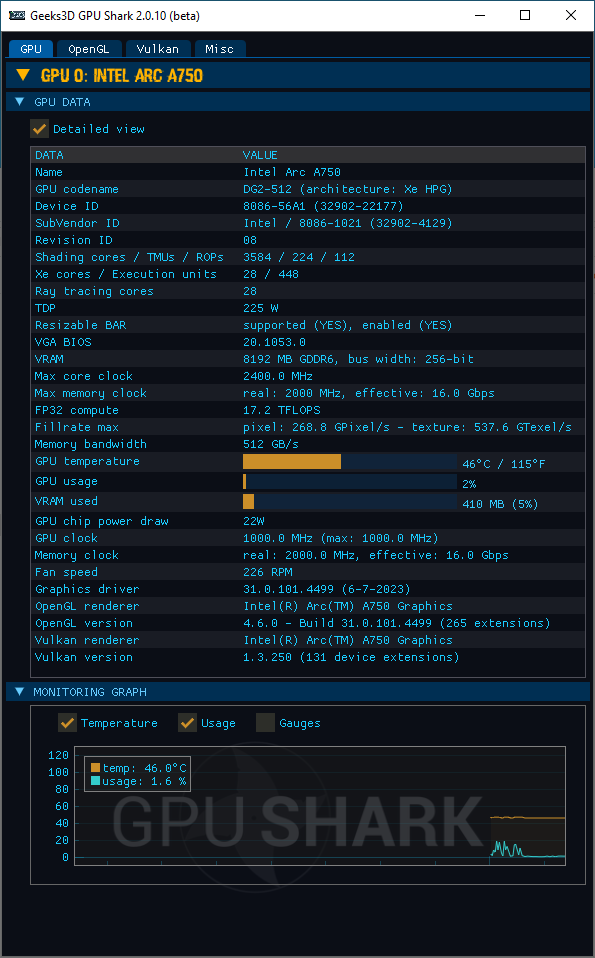

GPU Shark 2:
Intel Arc Graphics driver - GPU Shark 2 + Arc A750

Intel Arc Control center:
Intel Arc Control center + Arc A750



v31.0.101.4502

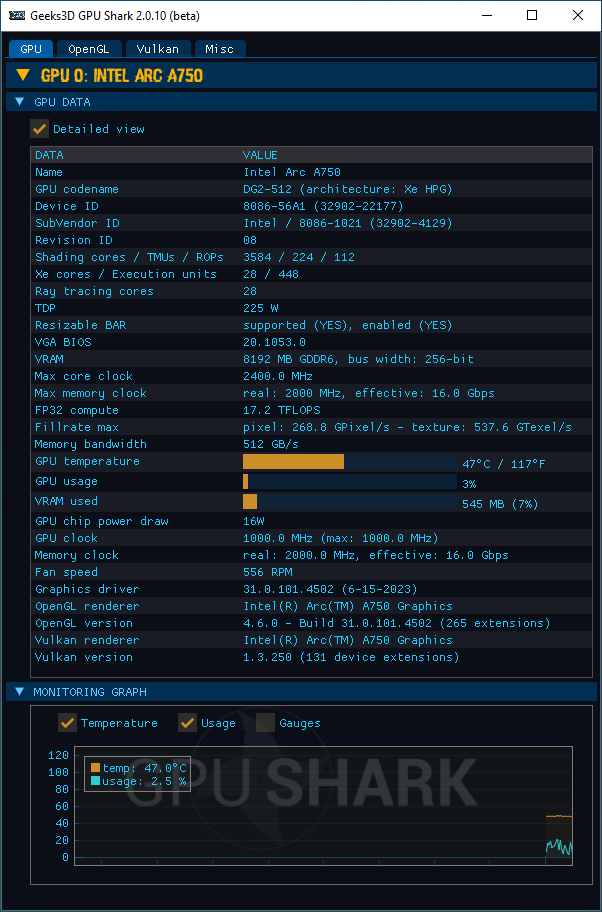

GPU Shark 2:
Intel Arc Graphics driver - GPU Shark 2 + Arc A750



v31.0.101.4514

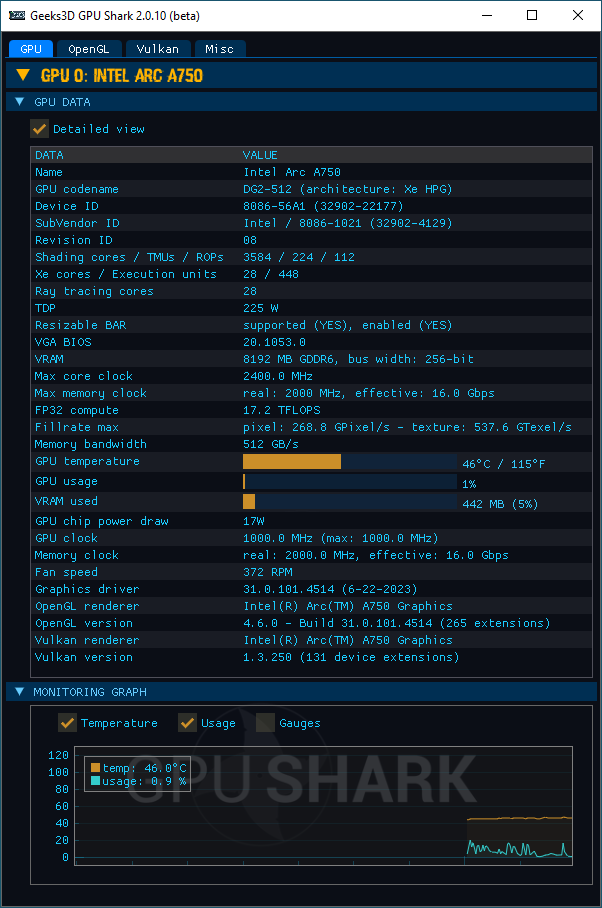

GPU Shark 2:
Intel Arc Graphics driver - GPU Shark 2 + Arc A750



OpenGL support

v31.0.101.4499

This driver exposes OpenGL 4.6 with 265 OpenGL extensions for an Arc A750. Same support than v3802, v3975 and v4382. The OpenGL extensions list is available HERE.

GL_RENDERER: Intel(R) Arc(TM) A750 Graphics
GL_VENDOR: Intel
GL_VERSION: 4.6.0 - Build 31.0.101.4499
OpenGL extensions: 265



v31.0.101.4502

Same support than previous v4499.

GL_RENDERER: Intel(R) Arc(TM) A750 Graphics
GL_VENDOR: Intel
GL_VERSION: 4.6.0 - Build 31.0.101.4502
OpenGL extensions: 265



v31.0.101.4514

Same OpenGL support.



Vulkan support

v31.0.101.4499

This driver exposes Vulkan 1.3.250 and 131 device extensions for an Arc A750 GPU. No new device extension in this driver.

There is a small change in the feature list: the shaderInt64 is now supported on Intel Arc GPUs.

# of Vulkan devices: 1
- Device 1
  - name: Intel(R) Arc(TM) A750 Graphics
  - device type: VK_PHYSICAL_DEVICE_TYPE_DISCRETE_GPU
  - device ID: 8086-56A1
  - API version: 1.3.250
  - VK_KHR_ray_tracing_pipeline information:
    - shaderGroupHandleSize: 32
    - maxRayRecursionDepth: 256
    - maxShaderGroupStride: 4294967295
    - shaderGroupBaseAlignment: 32
    - shaderGroupHandleCaptureReplaySize: 8
    - maxRayDispatchInvocationCount: 4294967295
    - shaderGroupHandleAlignment: 32
    - maxRayHitAttributeSize: 32
    - maxRayDispatchInvocationCount: 4294967295
  - VK_KHR_acceleration_structure information:
    - maxGeometryCount: 16777215
    - maxInstanceCount: 16777215
    - maxPrimitiveCount: 536870911
  - VK_KHR_driver_properties information:
    - driverName: Intel Corporation
    - driverID_str: VK_DRIVER_ID_INTEL_PROPRIETARY_WINDOWS_KHR
    - driverID: 5
    - conformanceVersion: 1.3.0.5
    - driverInfo: Intel driver
  - # of extensions: 131
  - VK_EXT_device_address_binding_report
  - VK_EXT_full_screen_exclusive
  - VK_KHR_swapchain
  - VK_KHR_external_memory
  - VK_KHR_external_memory_win32
  - VK_EXT_external_memory_host
  - VK_KHR_external_semaphore
  - VK_KHR_external_semaphore_win32
  - VK_KHR_external_fence
  - VK_KHR_external_fence_win32
  - VK_KHR_timeline_semaphore
  - VK_KHR_win32_keyed_mutex
  - VK_KHR_get_memory_requirements2
  - VK_KHR_bind_memory2
  - VK_KHR_dedicated_allocation
  - VK_KHR_sampler_mirror_clamp_to_edge
  - VK_KHR_maintenance1
  - VK_KHR_maintenance2
  - VK_KHR_maintenance3
  - VK_KHR_maintenance4
  - VK_KHR_synchronization2
  - VK_KHR_shader_draw_parameters
  - VK_KHR_push_descriptor
  - VK_KHR_descriptor_update_template
  - VK_KHR_multiview
  - VK_KHR_shader_float16_int8
  - VK_KHR_shader_float_controls
  - VK_KHR_16bit_storage
  - VK_KHR_8bit_storage
  - VK_EXT_shader_subgroup_ballot
  - VK_EXT_shader_subgroup_vote
  - VK_KHR_storage_buffer_storage_class
  - VK_KHR_variable_pointers
  - VK_KHR_relaxed_block_layout
  - VK_EXT_sampler_filter_minmax
  - VK_KHR_device_group
  - VK_KHR_sampler_ycbcr_conversion
  - VK_EXT_ycbcr_2plane_444_formats
  - VK_EXT_4444_formats
  - VK_EXT_post_depth_coverage
  - VK_EXT_shader_viewport_index_layer
  - VK_EXT_shader_stencil_export
  - VK_EXT_conservative_rasterization
  - VK_EXT_sample_locations
  - VK_KHR_draw_indirect_count
  - VK_EXT_multi_draw
  - VK_KHR_image_format_list
  - VK_EXT_image_view_min_lod
  - VK_EXT_vertex_attribute_divisor
  - VK_EXT_descriptor_indexing
  - VK_EXT_mutable_descriptor_type
  - VK_EXT_inline_uniform_block
  - VK_KHR_create_renderpass2
  - VK_KHR_dynamic_rendering
  - VK_KHR_swapchain_mutable_format
  - VK_KHR_depth_stencil_resolve
  - VK_KHR_driver_properties
  - VK_KHR_vulkan_memory_model
  - VK_EXT_conditional_rendering
  - VK_EXT_hdr_metadata
  - VK_EXT_mesh_shader
  - VK_KHR_fragment_shading_rate
  - VK_EXT_depth_clip_enable
  - VK_EXT_depth_clip_control
  - VK_EXT_scalar_block_layout
  - VK_KHR_imageless_framebuffer
  - VK_KHR_buffer_device_address
  - VK_EXT_buffer_device_address
  - VK_KHR_ray_tracing_pipeline
  - VK_KHR_acceleration_structure
  - VK_KHR_ray_query
  - VK_KHR_pipeline_library
  - VK_KHR_deferred_host_operations
  - VK_EXT_host_query_reset
  - VK_KHR_performance_query
  - VK_NV_device_diagnostic_checkpoints
  - VK_KHR_separate_depth_stencil_layouts
  - VK_KHR_shader_clock
  - VK_KHR_spirv_1_4
  - VK_KHR_uniform_buffer_standard_layout
  - VK_EXT_separate_stencil_usage
  - VK_EXT_fragment_shader_interlock
  - VK_EXT_index_type_uint8
  - VK_EXT_primitive_topology_list_restart
  - VK_KHR_shader_subgroup_extended_types
  - VK_EXT_line_rasterization
  - VK_EXT_memory_budget
  - VK_EXT_memory_priority
  - VK_EXT_pageable_device_local_memory
  - VK_EXT_texel_buffer_alignment
  - VK_INTEL_performance_query
  - VK_EXT_subgroup_size_control
  - VK_EXT_shader_demote_to_helper_invocation
  - VK_EXT_pipeline_creation_feedback
  - VK_EXT_pipeline_creation_cache_control
  - VK_KHR_pipeline_executable_properties
  - VK_EXT_transform_feedback
  - VK_EXT_provoking_vertex
  - VK_EXT_extended_dynamic_state
  - VK_EXT_extended_dynamic_state2
  - VK_EXT_extended_dynamic_state3
  - VK_EXT_vertex_input_dynamic_state
  - VK_EXT_custom_border_color
  - VK_EXT_robustness2
  - VK_EXT_image_robustness
  - VK_EXT_pipeline_robustness
  - VK_EXT_calibrated_timestamps
  - VK_KHR_shader_integer_dot_product
  - VK_KHR_shader_subgroup_uniform_control_flow
  - VK_KHR_shader_terminate_invocation
  - VK_KHR_workgroup_memory_explicit_layout
  - VK_EXT_shader_atomic_float
  - VK_KHR_copy_commands2
  - VK_KHR_shader_non_semantic_info
  - VK_KHR_zero_initialize_workgroup_memory
  - VK_EXT_shader_atomic_float2
  - VK_EXT_global_priority
  - VK_EXT_global_priority_query
  - VK_KHR_global_priority
  - VK_KHR_format_feature_flags2
  - VK_KHR_video_queue
  - VK_KHR_video_decode_queue
  - VK_KHR_video_decode_h264
  - VK_KHR_video_decode_h265
  - VK_EXT_color_write_enable
  - VK_NV_compute_shader_derivatives
  - VK_EXT_private_data
  - VK_EXT_image_2d_view_of_3d
  - VK_EXT_primitives_generated_query
  - VK_EXT_shader_module_identifier
  - VK_EXT_attachment_feedback_loop_layout
  - # of layers: 0
  - # of memory heaps: 3
  - heap 1: 7840 MB
  - heap 2: 8062 MB
  - heap 3: 256 MB
  - # of features: 55
  - robustBufferAccess:  YES
  - fullDrawIndexUint32:  YES
  - imageCubeArray:  YES
  - independentBlend:  YES
  - geometryShader:  YES
  - tessellationShader:  YES
  - sampleRateShading:  YES
  - dualSrcBlend:  YES
  - logicOp:  YES
  - multiDrawIndirect:  YES
  - drawIndirectFirstInstance:  YES
  - depthClamp:  YES
  - depthBiasClamp:  YES
  - fillModeNonSolid:  YES
  - depthBounds:  YES
  - wideLines:  YES
  - largePoints:  YES
  - alphaToOne:  YES
  - multiViewport:  YES
  - samplerAnisotropy:  YES
  - textureCompressionETC2:  YES
  - textureCompressionASTC_LDR:  NO
  - textureCompressionBC:  YES
  - occlusionQueryPrecise:  YES
  - pipelineStatisticsQuery:  YES
  - vertexPipelineStoresAndAtomics:  YES
  - fragmentStoresAndAtomics:  YES
  - shaderTessellationAndGeometryPointSize:  YES
  - shaderImageGatherExtended:  YES
  - shaderStorageImageExtendedFormats:  YES
  - shaderStorageImageMultisample:  NO
  - shaderStorageImageReadWithoutFormat:  YES
  - shaderStorageImageWriteWithoutFormat:  YES
  - shaderUniformBufferArrayDynamicIndexing:  YES
  - shaderSampledImageArrayDynamicIndexing:  YES
  - shaderStorageBufferArrayDynamicIndexing:  YES
  - shaderStorageImageArrayDynamicIndexing:  YES
  - shaderClipDistance:  YES
  - shaderCullDistance:  YES
  - shaderFloat64:  NO
  - shaderInt64:  YES
  - shaderInt16:  YES
  - shaderResourceResidency:  YES
  - shaderResourceMinLod:  NO
  - sparseBinding:  YES
  - sparseResidencyBuffer:  YES
  - sparseResidencyImage2D:  YES
  - sparseResidencyImage3D:  YES
  - sparseResidency2Samples:  YES
  - sparseResidency4Samples:  YES
  - sparseResidency8Samples:  NO
  - sparseResidency16Samples:  NO
  - sparseResidencyAliased:  YES
  - variableMultisampleRate:  YES
  - inheritedQueries:  YES
  - # of hardware limits: 106
    - maxImageDimension1D: 16384
    - maxImageDimension2D: 16384
    - maxImageDimension3D: 2048
    - maxImageDimensionCube: 16384
    - maxImageArrayLayers: 2048
    - maxTexelBufferElements: 134217728
    - maxUniformBufferRange: 134217724
    - maxStorageBufferRange: 1073741820
    - maxPushConstantsSize: 256
    - maxMemoryAllocationCount: 2193590
    - maxSamplerAllocationCount: 4000
    - bufferImageGranularity: 1
    - sparseAddressSpaceSize: 17523466567680
    - maxBoundDescriptorSets: 32
    - maxPerStageDescriptorSamplers: 67107840
    - maxSamplerAllocationCount: 67107840
    - maxPerStageDescriptorStorageBuffers: 67107840
    - maxPerStageDescriptorSampledImages: 67107840
    - maxPerStageDescriptorStorageImages: 67107840
    - maxPerStageDescriptorInputAttachments: 7
    - maxPerStageResources: 67107840
    - maxDescriptorSetSamplers: 67107840
    - maxDescriptorSetUniformBuffers: 67107840
    - maxDescriptorSetUniformBuffersDynamic: 16
    - maxDescriptorSetStorageBuffers: 67107840
    - maxDescriptorSetStorageBuffersDynamic: 16
    - maxDescriptorSetSampledImages: 67107840
    - maxDescriptorSetStorageImages: 67107840
    - maxDescriptorSetInputAttachments: 7
    - maxVertexInputAttributes: 32
    - maxVertexInputBindings: 32
    - maxVertexInputAttributeOffset: 2047
    - maxVertexInputBindingStride: 4095
    - maxVertexOutputComponents: 128
    - maxTessellationGenerationLevel: 64
    - maxTessellationPatchSize: 32
    - maxTessellationControlPerVertexInputComponents: 128
    - maxTessellationControlPerVertexOutputComponents: 128
    - maxTessellationControlPerPatchOutputComponents: 120
    - maxTessellationControlTotalOutputComponents: 4096
    - maxTessellationEvaluationInputComponents: 128
    - maxTessellationEvaluationOutputComponents: 128
    - maxGeometryShaderInvocations: 32
    - maxGeometryInputComponents: 128
    - maxGeometryOutputComponents: 128
    - maxGeometryOutputVertices: 256
    - maxGeometryTotalOutputComponents: 1024
    - maxFragmentInputComponents: 128
    - maxFragmentOutputAttachments: 8
    - maxFragmentDualSrcAttachments: 1
    - maxFragmentCombinedOutputResources: 67107848
    - maxComputeSharedMemorySize: 32768
    - maxComputeSharedMemorySize: 65536 x 65536 x 65536
    - maxComputeWorkGroupInvocations: 1024
    - maxComputeWorkGroupSize: 1024 x 1024 x 64
    - subPixelPrecisionBits: 8
    - subTexelPrecisionBits: 8
    - mipmapPrecisionBits: 8
    - maxDrawIndexedIndexValue: 4294967295
    - maxDrawIndirectCount: 4294967295
    - maxSamplerLodBias: 16.000000
    - maxSamplerAnisotropy: 16.000000
    - maxViewports: 16
    - maxViewportDimensions: 32768 x 32768
    - viewportBoundsRange: -65536.000000 x 65535.000000
    - viewportSubPixelBits: 8
    - minMemoryMapAlignment: 64
    - minTexelBufferOffsetAlignment: 64
    - minUniformBufferOffsetAlignment: 64
    - minStorageBufferOffsetAlignment: 64
    - minTexelOffset: -8
    - maxTexelOffset: 7
    - minTexelGatherOffset: -32
    - maxTexelGatherOffset: 31
    - minInterpolationOffset: -0.500000
    - maxInterpolationOffset: 0.437500
    - subPixelInterpolationOffsetBits: 4
    - maxFramebufferWidth: 16384
    - maxFramebufferHeight: 16384
    - maxFramebufferLayers: 2048
    - framebufferColorSampleCounts: 31
    - framebufferDepthSampleCounts: 31
    - framebufferStencilSampleCounts: 31
    - framebufferNoAttachmentsSampleCounts: 31
    - maxColorAttachments: 8
    - sampledImageColorSampleCounts: 31
    - sampledImageIntegerSampleCounts: 31
    - sampledImageDepthSampleCounts: 31
    - sampledImageStencilSampleCounts: 31
    - storageImageSampleCounts: 1
    - maxSampleMaskWords: 1
    - timestampComputeAndGraphics: 1
    - timestampPeriod: 52.083332
    - maxClipDistances: 8
    - maxCullDistances: 8
    - maxCombinedClipAndCullDistances: 8
    - discreteQueuePriorities: 2
    - pointSizeRange: 0.125000 x 255.875000
    - lineWidthRange: 0.000000 x 7.992188
    - pointSizeGranularity: 0.125000
    - lineWidthGranularity: 0.007812
    - strictLines: 0
    - standardSampleLocations: 1
    - optimalBufferCopyOffsetAlignment: 64
    - optimalBufferCopyRowPitchAlignment: 64
    - nonCoherentAtomSize: 1



v31.0.101.4502

Same Vulkan support than previous v4499.



v31.0.101.4514

Same Vulkan support than v4499.

Related posts:

  1. Intel Graphics Driver 31.0.101.4146 for Arc and Integrated GPUs (UPDATED: v101.4148 beta)
  2. Intel Graphics Driver 31.0.101.4311 for Arc and Integrated GPUs (*** UPDATED: v4335 ***)
  3. Intel Graphics Driver 31.0.101.4125 for Arc and Integrated GPUs
  4. Intel Graphics Driver 31.0.101.4369 for Arc and Integrated GPUs (*** UPDATE: v4382 BETA ***)
  5. Intel Graphics Driver 31.0.101.4255 for Arc and Integrated GPUs

4 thoughts on “Intel Graphics Driver 31.0.101.4499 for Arc and Integrated GPUs (*** UPDATED: v101.4514 ***)”

Comments are closed.
