AMD has published a new graphics driver for all modern Radeon graphics cards. Adrenalin 24.4.1 supports Radeon RX 7900, RX 7800, RX 7700, RX 7600, RX 6000, RX 5000 graphics cards. Radeon for laptop are also supported (RX 7900M, RX 6800M, RX 6700M, RX 6600M, RX 6500M, RX 6300M, RX 5700M/5600M/5500M/5300M).
New Feature Highlights
New Game Support
– Manor LordsPerformance Highlights
– Performance improvements for HELLDIVERS 2Expanded HYPR-Tune Support
– Nightingale
– SKULL AND BONESExpanded Vulkan Extensions Support
– VK_KHR_shader_maximal_reconvergence
– VK_KHR_dynamic_rendering_local_read
– Click HERE for more information about other Vulkan extension support.AI Application Update
– Support and optimizations for 7.1.0 & 7.1.1 versions of Topaz Gigapixel AI application with new “Recovery” and “Low Resolution” AI upscaling features.Fixed Issues
– Performance improvements for HELLDIVERS 2.
– Intermittent application crash may be observed while playing Lords of the Fallen and entering certain areas on Radeon RX 6000 series graphics products.
– Artifacts may appear in certain mud environments while playing SnowRunner on some AMD Graphics Products, such as the Radeon RX 6800.
– Rainbow-like artifacts may appear in water environments while playing Horizon Forbidden West Complete Edition on Radeon RX 6000 series graphics products.
– Intermittent application crash or driver timeout may be observed while playing Overwatch 2 with Radeon Boost enabled on Radeon RX 6000 and above series graphics products.
– Intermittent application freeze when first launching SteamVR using the Quest Link feature on Meta Quest 2.
– Intermittent system or application crash when screen sharing using Microsoft Teams.
– Intermittent application crash changing Anti-Aliasing settings while playing Enshrouded on Radeon 7000 series graphics products.
– Display colors may appear “dim” or “washed out” after closing Enshrouded with Auto HDR enabled.
Downloads
Quick driver information
Adrenalin 24.4.1

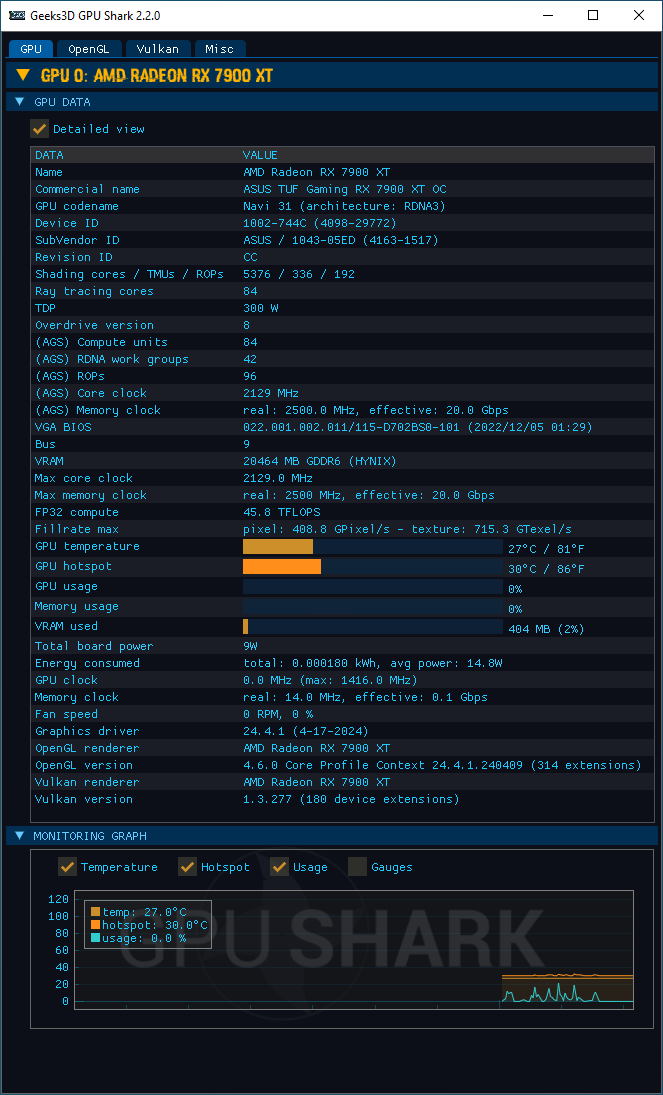

GPU Shark 2 + Radeon RX 7900 XT

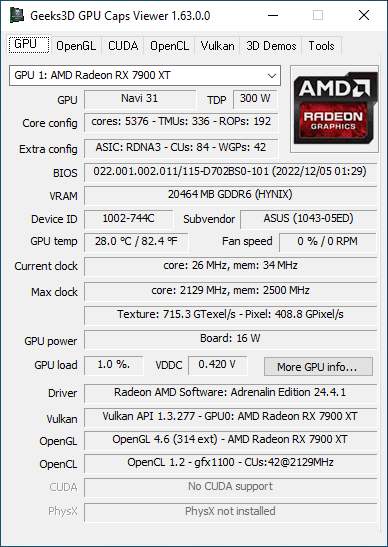

GPU Caps Viewer + Radeon RX 7900 XT

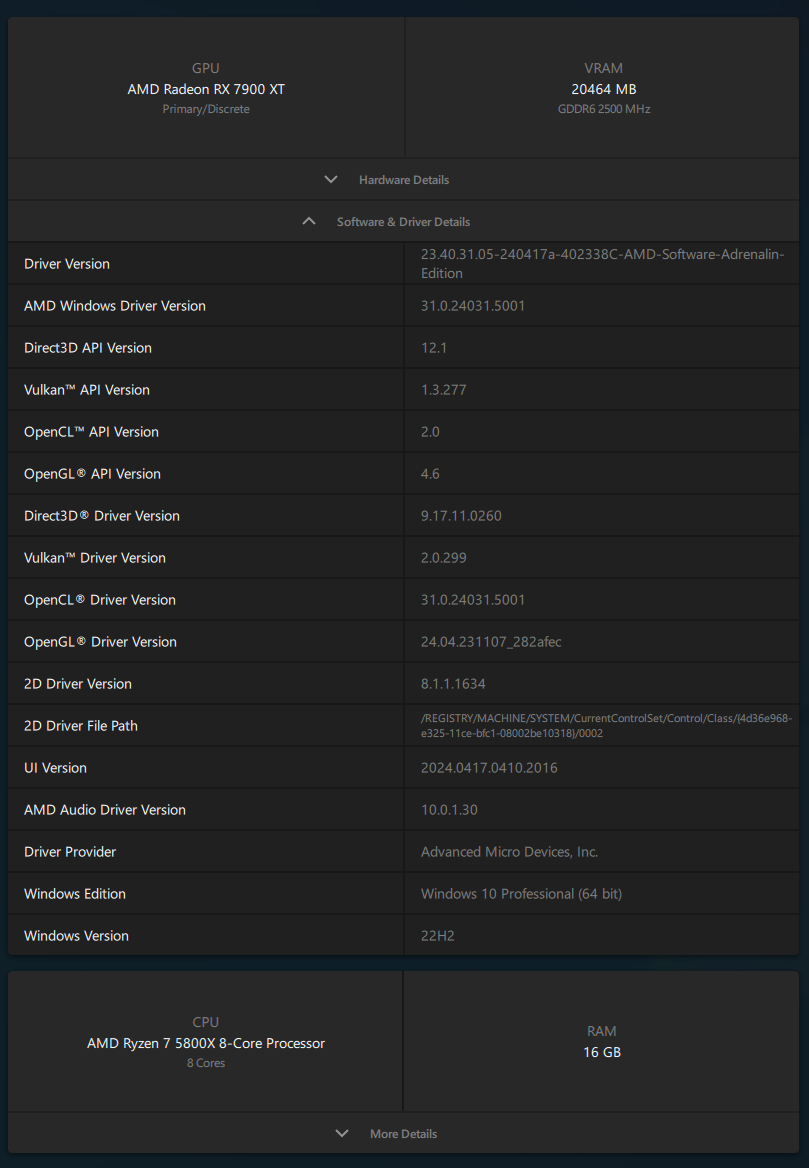

AMD Adrenalin 24.4.1 Software information
OpenGL support
Adrenalin 24.4.1
Adrenalin 24.4.1 exposes OpenGL 4.6 and 314 extensions (core profile) for a Radeon RX 7900 XT on Windows 10. Same support than previous v24.1.1.
GL_RENDERER: AMD Radeon RX 7900 XT GL_VENDOR: ATI Technologies Inc. GL_VERSION: 4.6.0 Core Profile Context 24.4.1.240409 OpenGL extensions: 314
Vulkan support
Adrenalin 24.4.1 exposes Vulkan 1.3.277 and 180 device extensions for a Radeon RX 7900 XT / XTX on Windows 10 (64-bit).
Two new extensions have been added:
– VK_KHR_dynamic_rendering_local_read
– VK_KHR_shader_maximal_reconvergence
GPU Shark 2 report:
# of Vulkan devices: 1
- Device 1
- name: AMD Radeon RX 7900 XT
- device type: VK_PHYSICAL_DEVICE_TYPE_DISCRETE_GPU
- device ID: 1002-744C
- API version: 1.3.277
- VK_KHR_ray_tracing_pipeline information:
- shaderGroupHandleSize: 32
- maxRayRecursionDepth: 1
- maxShaderGroupStride: 4096
- shaderGroupBaseAlignment: 64
- shaderGroupHandleCaptureReplaySize: 32
- maxRayDispatchInvocationCount: 1073741824
- shaderGroupHandleAlignment: 4
- maxRayHitAttributeSize: 32
- maxRayDispatchInvocationCount: 1073741824
- VK_KHR_acceleration_structure information:
- maxGeometryCount: 16777216
- maxInstanceCount: 16777216
- maxPrimitiveCount: 536870912
- VK_AMD_shader_core_properties information:
- shaderEngineCount: 6
- shaderArraysPerEngineCount: 2
- computeUnitsPerShaderArray: 8
- simdPerComputeUnit: 2
- wavefrontsPerSimd: 16
- wavefrontSize: 64
- sgprsPerSimd: 2048
- minSgprAllocation: 128
- maxSgprAllocation: 104
- sgprAllocationGranularity: 128
- vgprsPerSimd: 1536
- minVgprAllocation: 24
- maxVgprAllocation: 256
- vgprAllocationGranularity: 24
- VK_KHR_driver_properties information:
- driverName: AMD proprietary driver
- driverID_str: VK_DRIVER_ID_AMD_PROPRIETARY_KHR
- driverID: 1
- conformanceVersion: 1.3.2.5
- driverInfo: 24.4.1 (LLPC)
- # of extensions: 180
- VK_KHR_16bit_storage
- VK_KHR_8bit_storage
- VK_KHR_acceleration_structure
- VK_KHR_bind_memory2
- VK_KHR_buffer_device_address
- VK_KHR_calibrated_timestamps
- VK_KHR_cooperative_matrix
- VK_KHR_copy_commands2
- VK_KHR_create_renderpass2
- VK_KHR_dedicated_allocation
- VK_KHR_deferred_host_operations
- VK_KHR_depth_stencil_resolve
- VK_KHR_descriptor_update_template
- VK_KHR_device_group
- VK_KHR_draw_indirect_count
- VK_KHR_driver_properties
- VK_KHR_dynamic_rendering
- VK_KHR_dynamic_rendering_local_read
- VK_KHR_external_fence
- VK_KHR_external_fence_win32
- VK_KHR_external_memory
- VK_KHR_external_memory_win32
- VK_KHR_external_semaphore
- VK_KHR_external_semaphore_win32
- VK_KHR_format_feature_flags2
- VK_KHR_fragment_shader_barycentric
- VK_KHR_fragment_shading_rate
- VK_KHR_get_memory_requirements2
- VK_KHR_global_priority
- VK_KHR_imageless_framebuffer
- VK_KHR_image_format_list
- VK_KHR_index_type_uint8
- VK_KHR_line_rasterization
- VK_KHR_load_store_op_none
- VK_KHR_maintenance1
- VK_KHR_maintenance2
- VK_KHR_maintenance3
- VK_KHR_maintenance4
- VK_KHR_maintenance5
- VK_KHR_maintenance6
- VK_KHR_map_memory2
- VK_KHR_multiview
- VK_KHR_pipeline_executable_properties
- VK_KHR_pipeline_library
- VK_KHR_push_descriptor
- VK_KHR_ray_query
- VK_KHR_ray_tracing_maintenance1
- VK_KHR_ray_tracing_pipeline
- VK_KHR_ray_tracing_position_fetch
- VK_KHR_relaxed_block_layout
- VK_KHR_sampler_mirror_clamp_to_edge
- VK_KHR_sampler_ycbcr_conversion
- VK_KHR_separate_depth_stencil_layouts
- VK_KHR_shader_atomic_int64
- VK_KHR_shader_clock
- VK_KHR_shader_draw_parameters
- VK_KHR_shader_expect_assume
- VK_KHR_shader_float16_int8
- VK_KHR_shader_float_controls
- VK_KHR_shader_float_controls2
- VK_KHR_shader_integer_dot_product
- VK_KHR_shader_maximal_reconvergence
- VK_KHR_shader_non_semantic_info
- VK_KHR_shader_quad_control
- VK_KHR_shader_subgroup_extended_types
- VK_KHR_shader_subgroup_rotate
- VK_KHR_shader_subgroup_uniform_control_flow
- VK_KHR_shader_terminate_invocation
- VK_KHR_spirv_1_4
- VK_KHR_storage_buffer_storage_class
- VK_KHR_swapchain
- VK_KHR_swapchain_mutable_format
- VK_KHR_synchronization2
- VK_KHR_timeline_semaphore
- VK_KHR_uniform_buffer_standard_layout
- VK_KHR_variable_pointers
- VK_KHR_vertex_attribute_divisor
- VK_KHR_video_decode_h264
- VK_KHR_video_decode_h265
- VK_KHR_video_decode_queue
- VK_KHR_video_queue
- VK_KHR_vulkan_memory_model
- VK_KHR_win32_keyed_mutex
- VK_KHR_workgroup_memory_explicit_layout
- VK_KHR_zero_initialize_workgroup_memory
- VK_EXT_4444_formats
- VK_EXT_attachment_feedback_loop_layout
- VK_EXT_border_color_swizzle
- VK_EXT_calibrated_timestamps
- VK_EXT_color_write_enable
- VK_EXT_conditional_rendering
- VK_EXT_conservative_rasterization
- VK_EXT_custom_border_color
- VK_EXT_depth_clamp_zero_one
- VK_EXT_depth_clip_control
- VK_EXT_depth_clip_enable
- VK_EXT_depth_range_unrestricted
- VK_EXT_descriptor_buffer
- VK_EXT_descriptor_indexing
- VK_EXT_device_address_binding_report
- VK_EXT_device_fault
- VK_EXT_dynamic_rendering_unused_attachments
- VK_EXT_extended_dynamic_state
- VK_EXT_extended_dynamic_state2
- VK_EXT_extended_dynamic_state3
- VK_EXT_external_memory_host
- VK_EXT_frame_boundary
- VK_EXT_full_screen_exclusive
- VK_EXT_global_priority
- VK_EXT_global_priority_query
- VK_EXT_graphics_pipeline_library
- VK_EXT_hdr_metadata
- VK_EXT_host_query_reset
- VK_EXT_image_robustness
- VK_EXT_image_sliced_view_of_3d
- VK_EXT_image_view_min_lod
- VK_EXT_index_type_uint8
- VK_EXT_inline_uniform_block
- VK_EXT_line_rasterization
- VK_EXT_load_store_op_none
- VK_EXT_memory_budget
- VK_EXT_memory_priority
- VK_EXT_mesh_shader
- VK_EXT_mutable_descriptor_type
- VK_EXT_nested_command_buffer
- VK_EXT_non_seamless_cube_map
- VK_EXT_pageable_device_local_memory
- VK_EXT_pipeline_creation_cache_control
- VK_EXT_pipeline_creation_feedback
- VK_EXT_pipeline_library_group_handles
- VK_EXT_post_depth_coverage
- VK_EXT_primitive_topology_list_restart
- VK_EXT_primitives_generated_query
- VK_EXT_private_data
- VK_EXT_provoking_vertex
- VK_EXT_queue_family_foreign
- VK_EXT_robustness2
- VK_EXT_sampler_filter_minmax
- VK_EXT_sample_locations
- VK_EXT_scalar_block_layout
- VK_EXT_separate_stencil_usage
- VK_EXT_shader_atomic_float
- VK_EXT_shader_atomic_float2
- VK_EXT_shader_demote_to_helper_invocation
- VK_EXT_shader_image_atomic_int64
- VK_EXT_shader_module_identifier
- VK_EXT_shader_stencil_export
- VK_EXT_shader_subgroup_ballot
- VK_EXT_shader_subgroup_vote
- VK_EXT_shader_viewport_index_layer
- VK_EXT_subgroup_size_control
- VK_EXT_texel_buffer_alignment
- VK_EXT_tooling_info
- VK_EXT_transform_feedback
- VK_EXT_vertex_attribute_divisor
- VK_EXT_vertex_input_dynamic_state
- VK_EXT_ycbcr_image_arrays
- VK_AMD_buffer_marker
- VK_AMD_calibrated_timestamps
- VK_AMD_device_coherent_memory
- VK_AMD_display_native_hdr
- VK_AMD_draw_indirect_count
- VK_AMD_gcn_shader
- VK_AMD_gpa_interface
- VK_AMD_gpu_shader_half_float
- VK_AMD_gpu_shader_int16
- VK_AMD_memory_overallocation_behavior
- VK_AMD_mixed_attachment_samples
- VK_AMD_shader_ballot
- VK_AMD_shader_core_properties
- VK_AMD_shader_core_properties2
- VK_AMD_shader_early_and_late_fragment_tests
- VK_AMD_shader_explicit_vertex_parameter
- VK_AMD_shader_image_load_store_lod
- VK_AMD_shader_info
- VK_AMD_shader_trinary_minmax
- VK_GOOGLE_decorate_string
- VK_GOOGLE_hlsl_functionality1
- VK_GOOGLE_user_type
- VK_VALVE_mutable_descriptor_type
- # of layers: 1
- VK_LAYER_AMD_switchable_graphics
- # of memory heaps: 3
- heap 1: 20208 MB
- heap 2: 7908 MB
- heap 3: 256 MB
- # of features: 55
- robustBufferAccess: YES
- fullDrawIndexUint32: YES
- imageCubeArray: YES
- independentBlend: YES
- geometryShader: YES
- tessellationShader: YES
- sampleRateShading: YES
- dualSrcBlend: YES
- logicOp: YES
- multiDrawIndirect: YES
- drawIndirectFirstInstance: YES
- depthClamp: YES
- depthBiasClamp: YES
- fillModeNonSolid: YES
- depthBounds: YES
- wideLines: YES
- largePoints: YES
- alphaToOne: NO
- multiViewport: YES
- samplerAnisotropy: YES
- textureCompressionETC2: NO
- textureCompressionASTC_LDR: NO
- textureCompressionBC: YES
- occlusionQueryPrecise: YES
- pipelineStatisticsQuery: YES
- vertexPipelineStoresAndAtomics: YES
- fragmentStoresAndAtomics: YES
- shaderTessellationAndGeometryPointSize: YES
- shaderImageGatherExtended: YES
- shaderStorageImageExtendedFormats: YES
- shaderStorageImageMultisample: YES
- shaderStorageImageReadWithoutFormat: YES
- shaderStorageImageWriteWithoutFormat: YES
- shaderUniformBufferArrayDynamicIndexing: YES
- shaderSampledImageArrayDynamicIndexing: YES
- shaderStorageBufferArrayDynamicIndexing: YES
- shaderStorageImageArrayDynamicIndexing: YES
- shaderClipDistance: YES
- shaderCullDistance: YES
- shaderFloat64: YES
- shaderInt64: YES
- shaderInt16: YES
- shaderResourceResidency: YES
- shaderResourceMinLod: YES
- sparseBinding: YES
- sparseResidencyBuffer: YES
- sparseResidencyImage2D: YES
- sparseResidencyImage3D: YES
- sparseResidency2Samples: NO
- sparseResidency4Samples: NO
- sparseResidency8Samples: NO
- sparseResidency16Samples: NO
- sparseResidencyAliased: YES
- variableMultisampleRate: YES
- inheritedQueries: YES
- # of hardware limits: 106
- maxImageDimension1D: 16384
- maxImageDimension2D: 16384
- maxImageDimension3D: 8192
- maxImageDimensionCube: 16384
- maxImageArrayLayers: 8192
- maxTexelBufferElements: 4294967295
- maxUniformBufferRange: 4294967295
- maxStorageBufferRange: 4294967295
- maxPushConstantsSize: 128
- maxMemoryAllocationCount: 4294967295
- maxSamplerAllocationCount: 1048576
- bufferImageGranularity: 1
- sparseAddressSpaceSize: 140711718551552
- maxBoundDescriptorSets: 32
- maxPerStageDescriptorSamplers: 4294967295
- maxSamplerAllocationCount: 4294967295
- maxPerStageDescriptorStorageBuffers: 4294967295
- maxPerStageDescriptorSampledImages: 4294967295
- maxPerStageDescriptorStorageImages: 4294967295
- maxPerStageDescriptorInputAttachments: 4294967295
- maxPerStageResources: 4294967295
- maxDescriptorSetSamplers: 4294967295
- maxDescriptorSetUniformBuffers: 4294967295
- maxDescriptorSetUniformBuffersDynamic: 8
- maxDescriptorSetStorageBuffers: 4294967295
- maxDescriptorSetStorageBuffersDynamic: 8
- maxDescriptorSetSampledImages: 4294967295
- maxDescriptorSetStorageImages: 4294967295
- maxDescriptorSetInputAttachments: 4294967295
- maxVertexInputAttributes: 64
- maxVertexInputBindings: 32
- maxVertexInputAttributeOffset: 4294967295
- maxVertexInputBindingStride: 16383
- maxVertexOutputComponents: 128
- maxTessellationGenerationLevel: 64
- maxTessellationPatchSize: 32
- maxTessellationControlPerVertexInputComponents: 128
- maxTessellationControlPerVertexOutputComponents: 128
- maxTessellationControlPerPatchOutputComponents: 120
- maxTessellationControlTotalOutputComponents: 4096
- maxTessellationEvaluationInputComponents: 128
- maxTessellationEvaluationOutputComponents: 128
- maxGeometryShaderInvocations: 126
- maxGeometryInputComponents: 128
- maxGeometryOutputComponents: 128
- maxGeometryOutputVertices: 256
- maxGeometryTotalOutputComponents: 1024
- maxFragmentInputComponents: 128
- maxFragmentOutputAttachments: 8
- maxFragmentDualSrcAttachments: 1
- maxFragmentCombinedOutputResources: 4294967295
- maxComputeSharedMemorySize: 32768
- maxComputeSharedMemorySize: 4294967295 x 65535 x 65535
- maxComputeWorkGroupInvocations: 1024
- maxComputeWorkGroupSize: 1024 x 1024 x 1024
- subPixelPrecisionBits: 8
- subTexelPrecisionBits: 8
- mipmapPrecisionBits: 8
- maxDrawIndexedIndexValue: 4294967295
- maxDrawIndirectCount: 4294967295
- maxSamplerLodBias: 15.996094
- maxSamplerAnisotropy: 16.000000
- maxViewports: 16
- maxViewportDimensions: 16384 x 16384
- viewportBoundsRange: -32768.000000 x 32767.000000
- viewportSubPixelBits: 8
- minMemoryMapAlignment: 64
- minTexelBufferOffsetAlignment: 4
- minUniformBufferOffsetAlignment: 16
- minStorageBufferOffsetAlignment: 4
- minTexelOffset: -64
- maxTexelOffset: 63
- minTexelGatherOffset: -32
- maxTexelGatherOffset: 31
- minInterpolationOffset: -2.000000
- maxInterpolationOffset: 1.000000
- subPixelInterpolationOffsetBits: 8
- maxFramebufferWidth: 16384
- maxFramebufferHeight: 16384
- maxFramebufferLayers: 8192
- framebufferColorSampleCounts: 15
- framebufferDepthSampleCounts: 15
- framebufferStencilSampleCounts: 15
- framebufferNoAttachmentsSampleCounts: 15
- maxColorAttachments: 8
- sampledImageColorSampleCounts: 15
- sampledImageIntegerSampleCounts: 15
- sampledImageDepthSampleCounts: 15
- sampledImageStencilSampleCounts: 15
- storageImageSampleCounts: 15
- maxSampleMaskWords: 1
- timestampComputeAndGraphics: 1
- timestampPeriod: 10.000000
- maxClipDistances: 8
- maxCullDistances: 8
- maxCombinedClipAndCullDistances: 8
- discreteQueuePriorities: 2
- pointSizeRange: 0.000000 x 8191.875000
- lineWidthRange: 1.000000 x 8191.875000
- pointSizeGranularity: 0.125000
- lineWidthGranularity: 0.125000
- strictLines: 0
- standardSampleLocations: 1
- optimalBufferCopyOffsetAlignment: 1
- optimalBufferCopyRowPitchAlignment: 1
- nonCoherentAtomSize: 128
